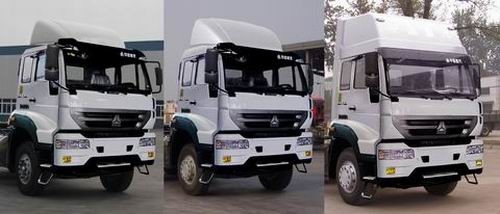

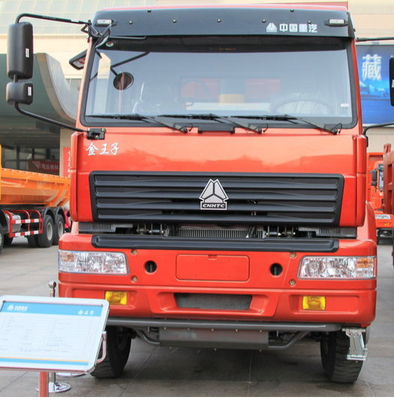

4X2 CARGO TRUCK ISO Passed SINOTRUK SWZ 4X2 CARGO TRUCK 6 Wheel Van/ lorry /Goods Vehicles
* According to each of the engine torque characteristic curve, perfectly match
the different types of Fast manual gearbox, Allision automatic gearbox, to
protect the most energy rationalization output, the vehicle has an excellent
starting ability, climbing ability.
* Optimized arrangement of the traditional system architecture, reducing the
loss of energy transfer process to ensure the kinetic energy efficient, rapid transmission.
* Using the unique steering and steering follower, the steering mechanism.
Steering light, the failure rate lower.
* Dual-circuit brake system equipped with high pressure geography accumulator
volume increases, the brake pressure increasing 25% to 1 Mpa, shorten braking distance.
Product Commercial Item:
| Minimum Order Quantity: |
1 unit |
| Price: |
Negotiable |
| Packaging Details: |
Nude |
| Delivery Time: |
Within 20-30 days after the receipt of the deposit |
| Payment Terms: |
LC/TT etc |
| Supply Ability: |
100 units per week |
Specifications:
| Item |
SINOTRUK SWZ 4X2 CARGO TRUCK |
| Truck model |
ZZ1251M3211 |
|
Maximum
output
|
290 hp (196 Kw) at 2200 rpm Option: 290/336/371hp |
| Engine model |
WD615.87, Euro II emission standard |
| Clutch |
Single-plate dry coil-spring clutch, diameter 420 mm,hydraulically operating with air assistance |
| Front Axles |
HW08 |
| Rear Axles |
HW1667 |
| Steering |
ZF power steering, model ZF8098, hydraulic steering with power assistance
Ratio: 26.2
|
| Tires |
12.00-20 tube Option: 12R20 tube, 12.00-24 tube, 12R24 tube, 12R22.5 tubeless |
| Air conditioner |
With safety belts for driver and co-driver;With air conditioner |
| Transmission |
HW15710/HW18710,10 speed |
| Export Markets |
South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|
Loading
Capacity
|
8-20T
|
| Driver's Cab |
HW70 Standard cab |
