Product Details:
|
Engine Model: | WD615.87, Euro II Emission Standard | Clutch: | Single-plate Dry Coil-spring Clutch, Diameter 420 Mm,hydraulically Operating With Air Assistance |
---|---|---|---|
Front Axles: | HF7/HF9, 7000kg/9000kg | Rear Axles: | ST13/ST16/HC16; 13000kg/16000kg |
Loading Capacity: | 20-40ton | Driver's Cab: | HW79 High Deck Cab,double Bunk |
Highlight: | military cargo truck,cargo container truck |

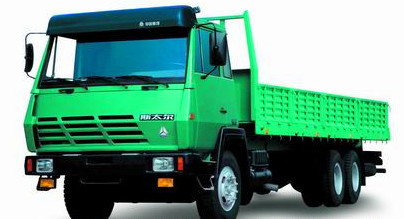

371hp Diesel DSINOTRUK STEYR 6X4 CARGO TRUCK 20-40Ton Lorry Truck
Description:
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
3). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
Normal Questions:
Q1: I want the tires are radial tires, is it ok ?
A: We can make the tires as your requirement to suit your country's need.
Q2: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and management team!We always attach great importance to quality controlling from the very beginning!
Q 3: What others we can do ?
A: According to your order, we will provide the best price and quality trucks .And we are well capable in offering overseas after-sales service. Besides, we also provide rational packing and shipping program,let shipment save money and security.
Q 4: What's the delivery time ?
A: The delivery time is within 45 working days after receiving your advance payment.
Specifications:
Item | SINOTRUK STEYR 6X4 CARGO TRUCK |
Truck model | ZZ1256M4646B |
Maximum output |
290 hp (196 Kw) at 2200 rpm Option: 290/336/371hp |
Engine model | WD615.87, Euro II emission standard |
Clutch | Single-plate dry coil-spring clutch, diameter 420 mm,hydraulically operating with air assistance |
Front Axles | HF7/HF9, 7000kg/9000kg |
Rear Axles | ST13/ST16/HC16; 13000kg/16000kg |
Steering |
ZF power steering, model ZF8098, hydraulic steering with power assistance Ratio: 26.2 |
Tires | 12.00-20 tube Option: 12R20 tube, 12.00-24 tube, 12R24 tube, 12R22.5 tubeless |
Air conditioner | With safety belts for driver and co-driver;With air conditioner |
Transmission | HW15710/HW18710,10 speed |
Export Markets | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
Loading Capacity |
20-40ton |
Driver's Cab | HW79 High deck cab,double bunk |
