Product Details:
|
| Standard: | Euro 3 | Drive Wheel: | 8x8 |
|---|---|---|---|
| Size: | 9728*2496*3110 | Product Name: | Howo 8x8 Heavy Cargo Truck |
| Gross Vehicle Weight: | 31000kg | Cab: | HW76 |
| Oil Tank: | 400L | Tire: | 12.00 - 20 |
| Highlight: | military cargo truck,cargo container truck |
||
Howo 8x8 All-Wheel Drive Vehicle Heavy Duty Cargo Truck Euro III Engine Energy Saving
About us:
Jinan Heavy Truck Import & Export Co., LTD is a professional heavy duty truck manufacture in
China. We focus on the service of all kinds of machinery and original spare parts. As a member
of SINOTRUK, our main products are SINOTRUK HOWO, HOWO A7,T7H, STEYR, STEYR KING,
GOLDEN PRINCE(SWZ10), HOKA, HOHAN and HOVA brand trucks, including Head tractor trucks
(Prime movers), Dump trucks(Tippers), Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/
Oil tank trucks, Sprinkling , Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks,
trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and so on.
Characteristics:
HOWO four-point susending cab,safe and comfortable;mature all-wheel drive technology,
good off-road performance.All models have the altemative of right steering-wheel.
Scope of application:
work in oil field,mine,for firefighting and forest.
Introduction of Heavy Duty Cargo Truck:
The truck adopts SINOTRUK EURO III series engine which has the world's best technologies
energy-saving. environmental protection and high efficiency.The engine is characterized by
good reliability,strong power,big torque,low emission,low fuel consumption and low noise.
Specification:
Main Technological Parameters of Heavy Duty Cargo Truck
| Truck model | ZZ2317N357C1 | ||
Dimension(length x width x height)(mm) |
9728x2496x3110 | ||
| Gross weight(kg) | 31000 | ||
| Total weight(kg) | 12100 | ||
| Max speed(km/h) | 75 | ||
| (mm)Wheelbase(mm) | 1950+3500+1400 | ||
Engine |
Mode | WD615.95C(WD615.96C)(WD615.96C for option) | |
| (KW/r/min) Rated engine power(KW/r/min) |
249/1900 | ||
| (N.m/r/min) Max.torque(N.m/r/min) |
1490/1200-1500 | ||
| Clutch | 430mm 430mm membrane spring clutch | ||
| Transmission | Type | HW19710 | |
| Ratio | 14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.8 1.34 1.00 R1 13.91 R2 3.18 | ||
| Drive axle | STR,ST16,5.73 STR steel front steering drive axle, ST16 rear drive axle,ratio 5.73 |
||
| Steering | ZF8098 | ||
Transfer case |
Mode | 2000 | |
High/low ratio |
0.89/1.536 | ||
| Brake type | service braking;dual circuit compressed air brake;parking brake(hand brake),spring energy air cut brake |
||
| Cab | HW76 HW76 cab | ||
| Electric system | VDO 24V,VDO electric system,24V.negative grounded | ||
| Tire | 12.00-20 | ||
| (L)Fuel tank(L) | 400 | ||

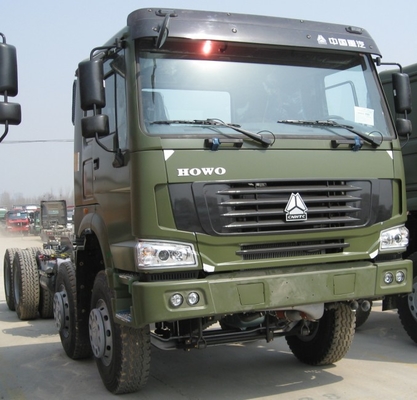

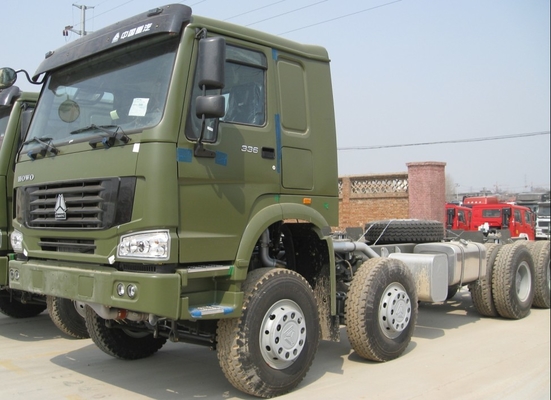

Pictures of Heavy Duty Cargo Truck:
