Product Details:
|
| Tanker Inside Dimension:: | 7800×2458×1608(mm)(L×W×H) | Oil Tank Volume:: | 25,000 Liters |
|---|---|---|---|
| Loading Capacity: | 40TONS | Axle: | BPW 12TON × 3 |
| Suspension:: | Mechanical Suspension | Main Beam: Height:: | 500MM |
| Highlight: | van semi trailer,tank semi trailer |
||
Three Axles Fuel Tanker Full Trailer
Specification:
| Tanker Inside Dimension: | 7800×2458×1608(mm)(L×W×H) |
| Oil tank volume: | 25,000 liters, tank thickness is 4 mm,Two rooms, |
| Loading capacity: | 40TONS |
| Axle: | BPW 12TON × 3 |
| Suspension: | Mechanical suspension |
| Main beam: | height: 500MM |
| Upper plate: | 14MM,Down plate 18MM; Material: Q345B Steel. |
| Base plate: | 8MM |
| Brake chamber: | 4 relay valve |
| Light: | LED light,24V, 7 ways wire harness |
| Tires: | 12.00R20,Tires Triangle brand 12+1 PCS |
| Rim: | 9.0 13PCS |
| Painting: | complete chassis sand blasting to clean rest |

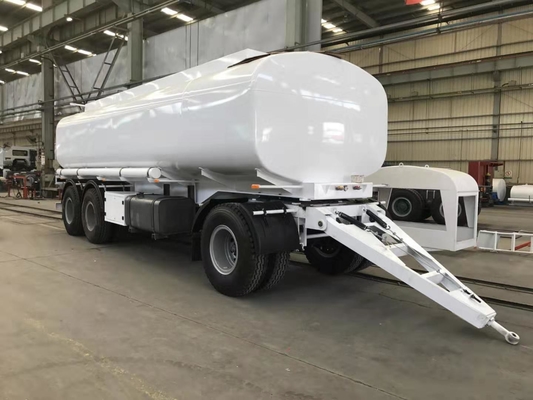

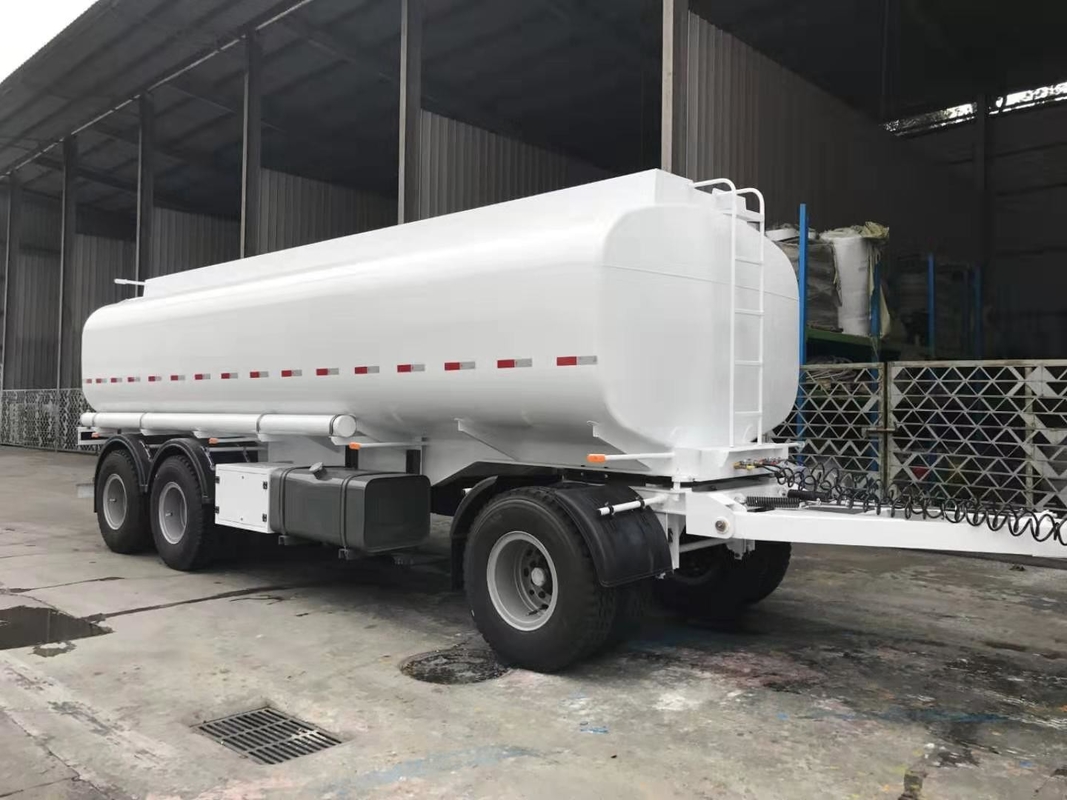

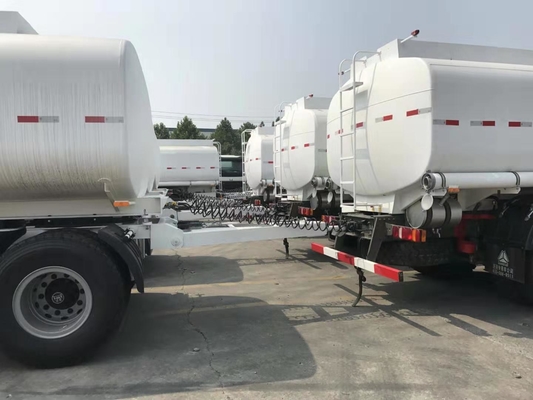

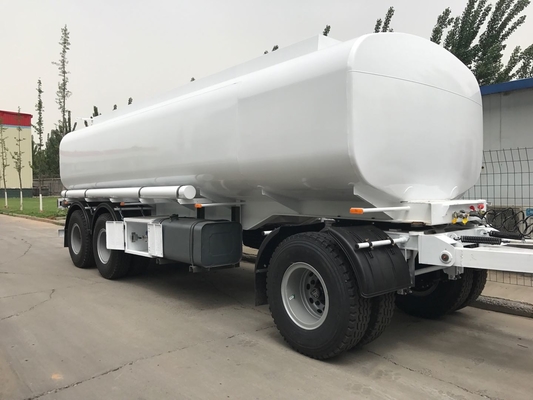

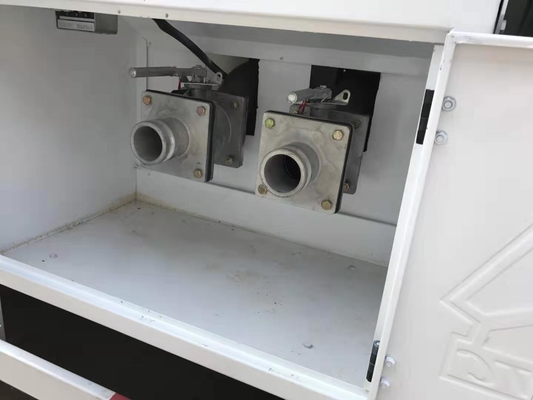

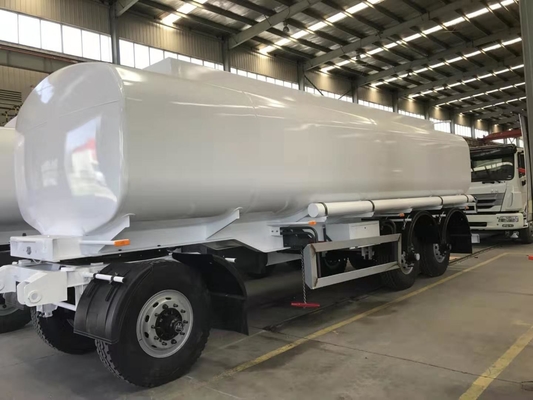

Pictures of Full Trailer:
