Product Details:
|
Material: | Q345 | Axle: | FUWA, BPW |
---|---|---|---|
Tire: | 12.00R20, 315/80.22.5 | Room: | 2rooms, 3 Rooms |
DRAW BAR: | 4*4 Or 4*6mm Square Tube (lengthis 1.4m ) Or Design And Make Depends On Request | KINGPIN: | 2.0 Or 3.5 |
Highlight: | van semi trailer,tank semi trailer |

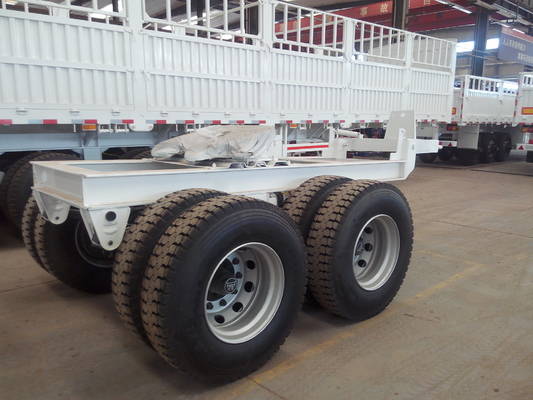

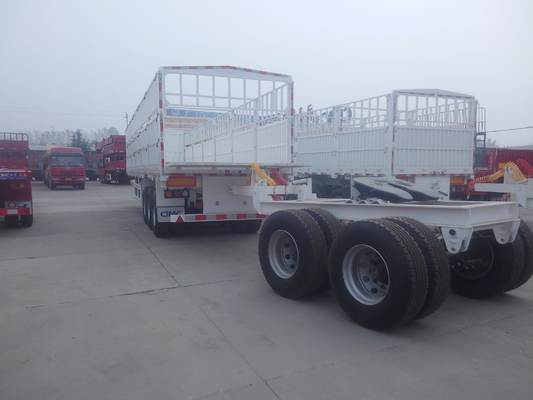

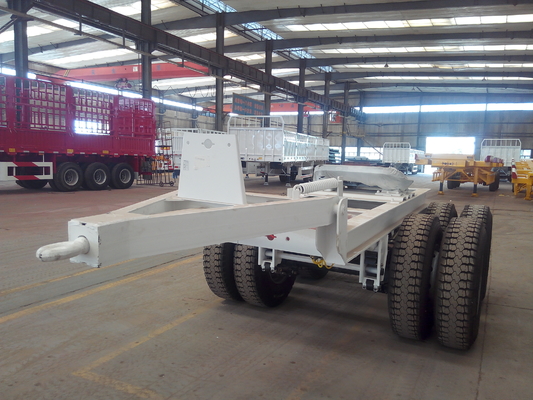

2 BPW brand axles full trailer connector suitable for connect two units semi-trailer
Specification:
Chassis and main parts | |
DIMENSION | 7500mm*2490mm*1557mm,Size can be design depends on customers' request |
AXLES | 13 T/PER axle, FUWA /BPW/HJ brands for choose |
RIM | 9.00-22.5 13PCS or other sizes |
TIRE | 12R22.5-22.5 13 PCS or other sizes ,Triangle/Double Coin/Linglong |
SUSPENSION | Mechanical suspension or Airbag suspension |
LEAF SPRING | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 Layer |
KINGPIN | JOST brand 2.0 or 3.5inch bolts type or turntable (diameter is 1.1m) |
DRAW BAR | 4*4 or 4*6mm square tube (lengthis 1.4m ) or design and make depends on request |
TRACTOR HOOK | DN50 |
MAIN BEAM | Height: 450mm-520mm, upper plate is 14mm-16mm, middle plate is 8mm-12mm, down plate is 16mm-20mm ; Material is Q345B standard steel . |
SIDE BEAM | 16mm -25mm channel steel (Material is Q235B standard steel ). |
PLATFORM | Standard 3 mm thickness checkered plate |
SIDE WALL | Can be fixed with 600mm-1200mm side door |
BRAKING SYSTEM | WABCO brand emergency valve, T30/30+T30 Spring brake chamber,one piece of 45L air tank , ABS is optional |
TWIST LOCKS | Can be fixed with 4 or 8 or 12PCS (lift and screw type for choose) |
ELECTRIC SYSTEM | Voltage is 24V / 7 ways (7 wire harness) / LED light |
TOOL BOX | One piece ,equipped with 1 unit Tire spanner,1 piece sleeve and 1 piececranking bar) |
PAINTING | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
OTHERS | Design and make the right trailer depends on customers' request |
