Product Details:
|
Product Name: | Container Skeleton Semi Trailer | ABS: | Optional |
---|---|---|---|
Shipping Terms:: | Transport By Bulk Cargo Carrier,RORO Or 40HQ Container. | Twist Locks: | Four,Eight Or Twelve Pieces(Lifting Type Or Twist Screw Type) |
Support Leg: | JOST Brand D200T Or China Brand 28Tons(Double Speed) | King Pin: | JOST Brand 2.0 Or 3.5inch Bolts Type Or Welding Type |
Highlight: | van semi trailer,tank semi trailer |
13T per Axle for Container Skeleton Semi Trailer with Led Light in Optional Color
Blueprint:
Specifaction:
Gross Weight |
About 5.5 tons or 3.2 tons |
Outer side dimension |
12450 X 2490 X 1557(three or two axles)40FT (mm) 7160X 2490 X 1557(two axles)20FT |
Loading Capacity(Ton) |
45T(40FT)45T(20FT) |
AXLES |
13 T/PER,FUWA Brand,BPW Brand,or Huajing Brand |
Tire |
12.00R22.5 or 315/80R22.5China Brand or According to Customer requirement |
Rim |
9.00-22.5 China Brand |
Suspension |
Mechanical suspension(Germany Type or America Type) Or Air suspension(China brand or BPW brand) |
Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin |
JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg |
JOST brand D200T or China brand 28Tons(Double speed) |
Main beam |
Height:500mm,upper plate is 14mm,middle plate is 8mm, down plate is 16mm;Material is Q345B Steel. |
Side beam |
16mm or 18mm channel steel(Material is Q235steel). |
Brake chamber |
WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks |
Twist Locks |
Four,Eight or Twelve pieces(Lifting type or Twist Screw Type) |
Valve |
WABCO valve |
ABS |
Optional |
Light |
LED light |
Voltage |
24V |
Receptacle |
7 ways(7 wire harness) |
Tool box |
One piece,1mX0.5mX0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting |
Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint |
Shipping Terms: |
Transport by bulk cargo carrier,RORO or 40HQ container. |
Supplying products are all series of SINOTRUK ,
including dump trucks, tractor trucks etc, and special type truck, different type semi trailer.
We have more than 10 years professional marketing experience on oversea and domestic
market,Our products have been exported Southeast Asia, Africa and South America, more
than 40 countries and get a good reputation.

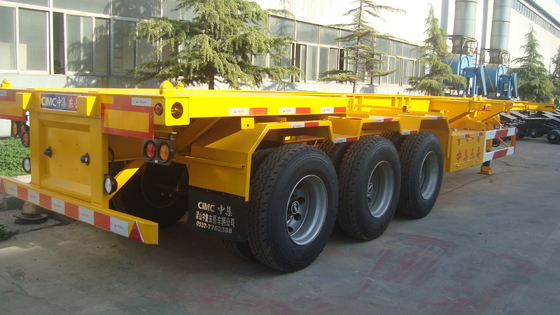

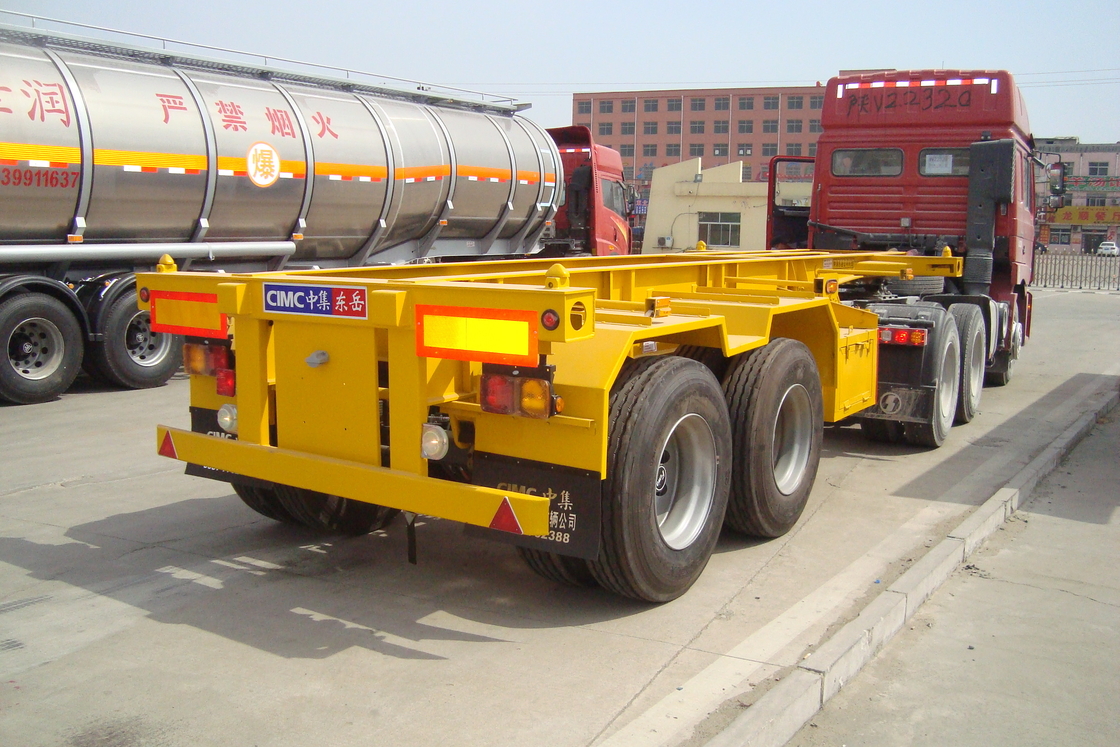

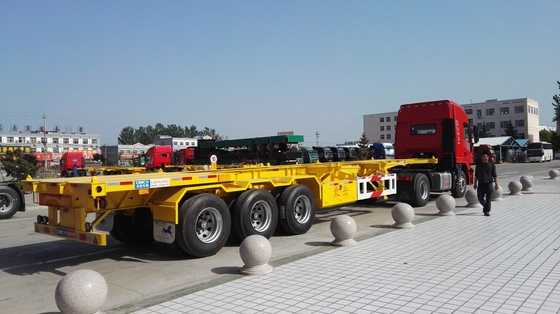

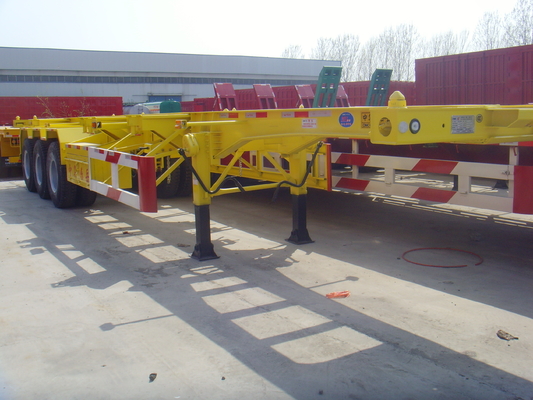

Pictures:
Packaging & Delivery:
Packaging : All the truck will be polished with wax before shipping .
Shipping : You can choose the following way : Roro , Bulk cargo vessel , Flatrack ,
40 HQ Container for the trailer and parts only.
Port of shipments: China Main Port.
Supply free one set of filter element for your purchased truck.
