Product Details:
|
| Product Name: | Bulk Cargo Tansport Semi Trailer | Tire: | 12.00R22.5/315 80R22.5 |
|---|---|---|---|
| Spring Leaf: | 90(W)mm*13(Thickness)mm*10 Layer Or 100mm*12mm*12 | Side Beam: | 16mm Or 18mm Channel Steel(Material Is Q235steel). |
| Side Wall: | 600mm-1500mm,or Can Be Do Box Type,for Choose | Color: | Optional |
| Highlight: | van semi trailer,tank semi trailer |
||
Q345B Steel and 60T Loading Capacity Bin grid semi-trailer for Bulk Cargo Tansport Semi Trailer
FAQ:
1. MOQ: 1 units.
2. Terms of payments: T/T or irrevocable L/C at sight.
3. Delivery time: within 30 days after receiving deposit or irrevocable L/C.
24 hours online,First time reply on inquiry.
Offer workable price and professional advices on trucks purchasing
Customized Products with customers specific requirements.
Top quality and fast delivery guaranteed by international production line.
Specifaction:
|
Tare Weight |
About 7.6T |
|
Dimension |
13000mm*2490mm*2860mm |
|
Loading Capacity(T) |
60T |
|
Axle |
13 T/16T,FUWA/BPW/Huajing Brand |
|
Rim |
9.00-22.5 |
|
Tire |
12.00R22.5/315 80R22.5/12R22.5 |
|
Suspension |
Mechanical suspension(Germany Type or America Type)Or Air suspension(China brand or BPW brand) |
|
Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
|
King pin |
JOST brand 2.0 or 3.5inch bolts type or Welding type |
|
Support leg |
JOST brand D200T or China brand 28Tons(Double speed) |
|
Main beam |
Height:500mm,upper plate is 14mm,middle plate is 8mm, down plate is 16mm;Material is Q345B Steel. |
|
Side beam |
16mm or 18mm channel steel(Material is Q235steel). |
|
Side Wall |
600mm-1500mm,or can be do box type,for choose |
|
Brake chamber |
WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber (TKL brand);Two pieces of 45Lair tanks |
|
ABS |
Optional |
|
Twist Locks |
Four,Eight or Twelve pieces(Lifting type or Twist Screw Type),optional |
|
Valve |
WABCO valve |
|
Light |
LED light |
|
Voltage |
24V |
|
Receptacle |
7 ways(7 wire harness) |
|
Tool box |
One piece,ImX0.5mX0,5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
|
Painting |
Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint |
|
Shipping Terms: |
By bulk cargo carrier,RORO or 40HQ container. |

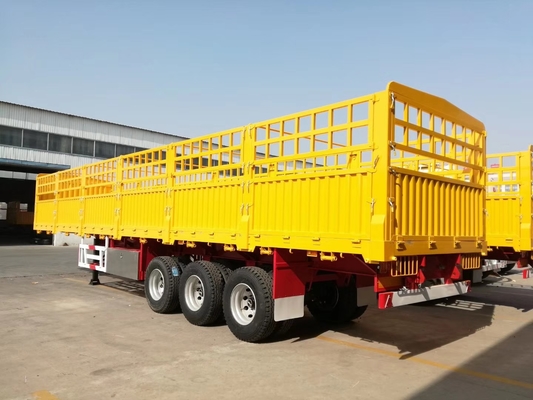

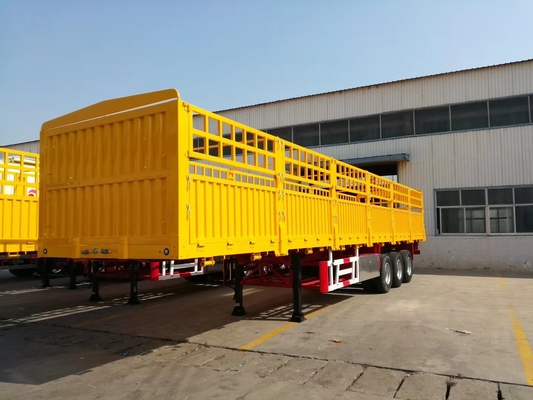

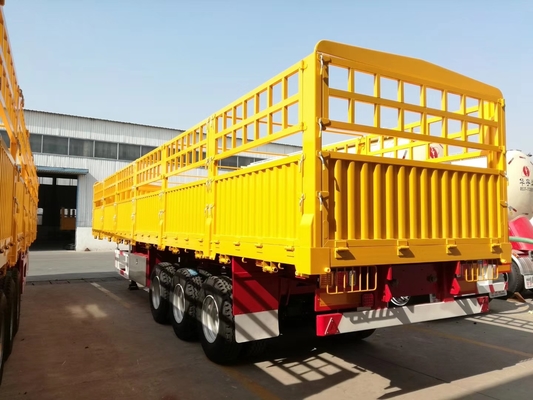

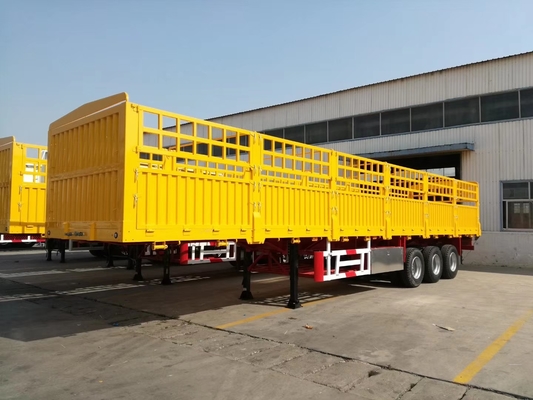

Pictures:
Packaging & Delivery:
Packaging : All the truck will be polished with wax before shipping .
Shipping : You can choose the following way : Roro , Bulk cargo vessel , Flatrack ,
40 HQ Container for the trailer and parts only.
Port of shipments: China Main Port.
Supply free one set of filter element for your purchased truck.
