Product Details:
Place of Origin: China
Brand Name: Howo
Certification: ISO CCC
Model Number: jnhtc
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD23100-25410
Packaging Details: nude
Delivery Time: 45 Work days
Payment Terms: L/C, T/T
Supply Ability: 50 units per week

Howo 40 Ton Dump Truck 6x4 Manual Transmission 336HP 10 Wheels Euro 2 Standard Diesel Fuel Tipper Truck

Description
Horsepower: 336hp Colorwhite: Blue
Fuel Tank: 400L Drive Wheel: 6x4
Tyres: 12.00R20 Capacity (Load): 21 - 30T
Steering: Left
Highlight:

336HP Dump Truck

,

10 Wheels Dump Truck

,

6x4 Manual Transmission Dump Truck

Howo 40 Ton Dump Truck 6x4 Manual Transmission 336HP 10 Wheels Euro 2 Standard Diesel Fuel Tipper Truck



Model
ZZ3257V3847B1

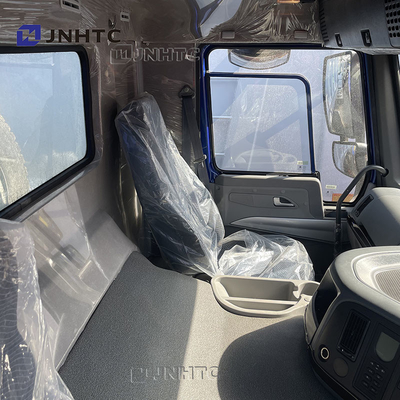

Driver's Cab
HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine
Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6
cylinder in-line with water cooling, turbo-charging & inter cooling.
Maximum output: 400PS (294kW) at 2100 rpm
Maximum torque: 2060Nm at 1200-1500rpm
Bore: 126mm Stroke: 155mm
Displacement: 11.596L
Brand: Weichai
Steering
Model: BOSCH
Hydraulic steering with power assistance
Left hand driving
Clutch
Φ430 Pull-type diaphragm spring clutch
Transmission
Model: HW19710, 10 forward and 2 reverse
Manual type
With transmission power take-off HW70
Max Torque: 1900N·M
Front Axle
Model: HF9
Drum brake system
Rated loading capacity :9000kgs
Rear Axle
Model: MCP16ZG
Capacity: 16000kgs
Drum braking steering axle,self-adjusting arm
Speed ratio:
Wheelbase
3800+1350 mm
Brake System
Type :Wabco braking system
ABS 4S/4M
Engine exhaust valve brake
Oil Tanker
300L aluminum alloy fuel tank
Tires
Types: 12.00R20 radial tire; 18PR
10 pcs, plus one pc spare tire
Bumper
Metal bumper
Dump body
5600*2300*1500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral
fender, headlight cover.
Dimensions in mm
Front wheel track (mm): 2022
Rear wheel track (mm):1830
Overhang(front/rear) (mm):1500/1870
Overall Dimension (mm): 8650*2580*3450
Weight in kg
Dead weight (kg):13500
Gross vehicle weight (kg):25000




A dump truck is a powerful and versatile vehicle designed for transporting and unloading bulk materials. Here's an in-depth look at dump trucks:

Applications

  • Construction: Moving earth, sand, gravel, and other materials for building projects.
  • Mining: Transporting minerals and waste from the mining site to processing facilities.
  • Landscaping: Hauling soil, mulch, and rocks for landscaping projects.
  • Waste Management: Transporting demolition waste and other bulk trash to disposal sites.
  • Road Maintenance: Delivering materials for road repair and construction.

Capacity and Size

  • Small Dump Trucks: Typically have a capacity of 1-5 cubic yards and are used for smaller projects.
  • Medium Dump Trucks: Range from 5-15 cubic yards, suitable for mid-sized construction and landscaping projects.
  • Large Dump Trucks: Can carry 15-30 cubic yards or more, used in large-scale mining and heavy construction.

Regulations and Safety

  • Weight Limits: Adherence to legal weight limits to avoid fines and damage to roads.
  • Maintenance: Regular maintenance of hydraulic systems, tires, and chassis to ensure safety and efficiency.
  • Operational Procedures: Proper training for operators to handle loading, unloading, and driving safely.
