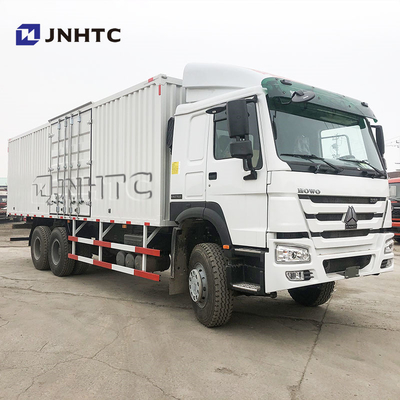

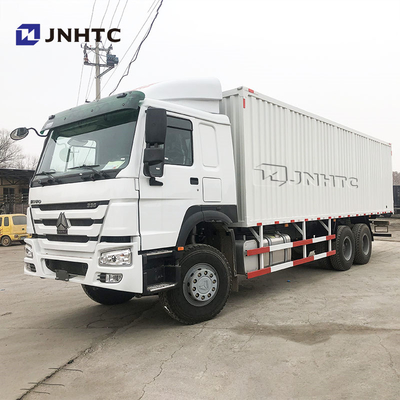

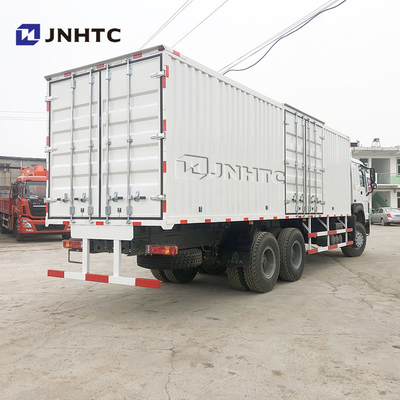

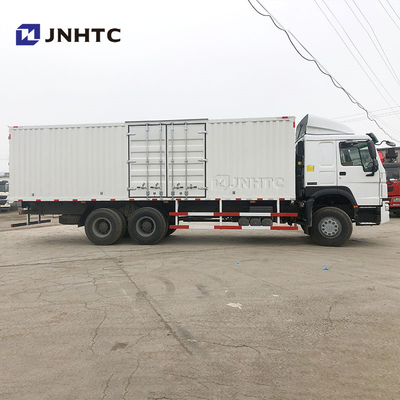

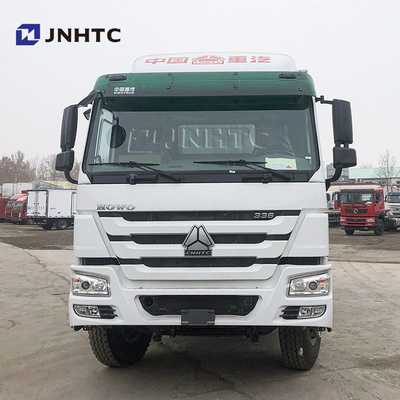

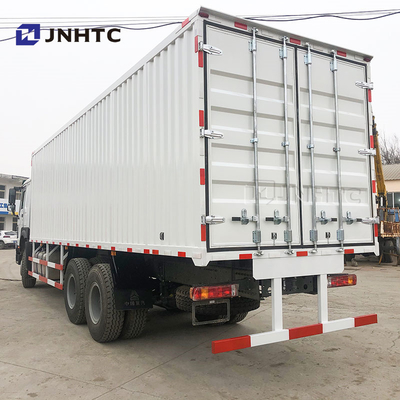

Brand New Howo 336HP Cargo Van Truck 6*4 Fence Cargo Truck Heavy Duty Stake Cargo Lorry Trucks
A cargo truck is a type of vehicle designed primarily for transporting goods and materials. They come in various sizes and configurations, from small delivery trucks to large semi-trucks or lorries. Some key features of cargo trucks include:
-
Cargo Space: The main area where goods are stored, which can be enclosed or open depending on the type of truck and its intended use.
-
Payload Capacity: The maximum weight of cargo that the truck can safely carry, which varies by truck size and design.
-
Drive Types: Cargo trucks can have different drive configurations, such as two-wheel drive (2WD) or all-wheel drive (AWD), depending on their intended use and the terrain they will encounter.
-
Engine and Performance: Depending on the size and type of the truck, the engine power and performance can vary significantly. Larger trucks usually have more powerful engines to handle heavier loads.
-
Safety Features: Modern cargo trucks are equipped with various safety features such as anti-lock braking systems (ABS), electronic stability control (ESC), and advanced driver assistance systems (ADAS) to enhance safety on the road.
-
Types: Common types include box trucks (with a closed cargo area), flatbed trucks (with an open cargo area), and refrigerated trucks (with temperature-controlled cargo areas for perishable goods).
| Model |
ZZ1257N4641W |
| Cabin |
HW76, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating
and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse
stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler |
Engine |
Model |
WD615.47 |
| |
Horse Power (Hp/rpm) |
371/2200 |
| |
Max.Toruqe(Nm/rpm) |
1820/1100-1500 |
| |
Displacement (L) |
9.726 |
| |
Type |
DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic
controlled diesel engine |
| Clutch |
Φ430 Diaphragm spring clutch, hydraulic operating with air assistance |
| Transmission |
HW19712, 12 speeds forward and 2 speeds reverse. |
| Front Axle |
HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs. |
| Driving Axle |
HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42,
4.8) |
| Suspension |
Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs,
bogie spring and stabilizer |
| Steering System |
ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Brake System |
Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating;
Auxiliary brake: Engine exhaust brake |
| Electrics |
Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah |
| Tire |
12.00R20 |
| Fuel Tank(Gas Tank) Capacity (L) |
400L Diesel Tank |
| Dead Weight (kg) |
12530 |
| Gross Vehicle Weight (kg) |
33000 |
| Gross Combination Weight (kg) |
80000 |
| Overall Dimension(L*W*H)(mm) |
8145×2560×3450 |
| Wheelbase(mm) |
4625+1350 |
| Front/Rear Overhang( mm) |
1500/725 |
| Wheel Track(Front/Rear)(mm) |
2022/1850 |
| Min. Ground Clearance(mm) |
314 |
| Approach/Departure Angle( °) |
16/70 |
| Max. Speed (km/h) |
92 |
| Max. Gradebility (%) |
≥40 |
| Bucket Size |
7500*2300*2300mm |
Q1. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q2. How long delivery time ?
A:15-25 days;If you voltage special, we need costomized refrigeration equipment, need 45 days.
Q3. What logistics ways can we work for shipment?
A:We can ship truck/bus by various transportation tools: 1. For 90% of our shipment, we will go by sea,
to all main continents such as South America, Middle East, Africa, Oceania and Europe etc, either by container
or RoRo/Bulk shipment. 2. For neighborhood countries of China, such as Russia, Mongolia, Kazahkstan, Uzbekistan
ets …, we can ship it by road or railway.
Q4. Could your factory accept customized ?
A:We can do customized dimension according to customers'requirements. We have access to all the leading
Cold Room refrigerators brands and can offer independent advice, and recommend right equipment to meet
your business requirements.
Q5. How about the after-sale service? A:(1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp,
etc. (2) To solve the problems with videos/pictures. (3) One year warranty for spare parts change.
