Product Details:
|
| Box Dimenssion: | 7800*2500*3000 | Oil Tank: | 400L |
|---|---|---|---|
| Transmission: | Hw19710 | Horsepower: | 420hp |
| Wheelbase: | 4300mm | Production Capacity: | 500units |
| Cargo Tank Type: | Fence | ||
| Highlight: | 420HP Howo Cargo Truck,10 Wheeler Howo Cargo Truck,6x4 Howo Cargo Truck |
||
A fence cargo truck is a type of vehicle specifically designed for transporting goods that need to be
secured or contained within a fenced or enclosed area on the truck bed. This setup is ideal for
carrying materials like construction supplies, livestock, or equipment that might need protection or
containment during transit. Here are some key features and considerations:
Fencing or Enclosure: The truck bed is equipped with fencing or mesh panels around the
sides and often the rear. This fencing helps secure the cargo and prevent it from falling off
or shifting during transport.
Cargo Security: The fence or enclosure ensures that items remain in place and are less
likely to be damaged or lost. It also helps in transporting items that might be hazardous or
require special handling.
Types of Fencing: The fencing can vary depending on the cargo being transported. It could
be made of metal mesh, solid panels, or a combination of materials. Some designs may
include a tailgate or rear door for easy loading and unloading.
Loading and Unloading: The truck may be equipped with features like a hydraulic lift gate
or ramps to facilitate the loading and unloading of cargo.
Applications: Fence cargo trucks are commonly used in industries such as agriculture (for
transporting livestock), construction (for transporting tools and materials), and logistics (for
carrying goods that need to be secured).
| Model | ZZ1257N4341W | |

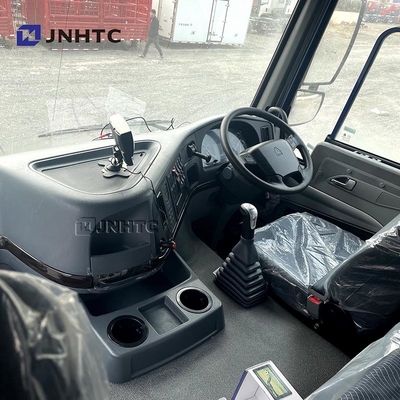

| Cabin | HW76, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler |
|
Engine |
Model | WD615.47 |
| Horse Power (Hp/rpm) | 400/2200 | |
| Max.Toruqe(Nm/rpm) | 1820/1100-1500 | |
| Displacement (L) | 9.726 | |
| Type | DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic controlled diesel engine |
|
| Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance | |
| Transmission | HW19712, 12 speeds forward and 2 speeds reverse. | |
| Front Axle | HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs. | |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42, 4.8) |
|
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer |
|
| Steering System | ZF power steering, model ZF8118, hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake |
|
| Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah | |
| Tire | 12.00R20 | |
| Fuel Tank(Gas Tank) Capacity (L) | 400L Diesel Tank | |
| Dead Weight (kg) | 12530 | |
| Gross Vehicle Weight (kg) | 33000 | |
| Gross Combination Weight (kg) | 80000 | |
| Overall Dimension(L*W*H)(mm) | 8145×2560×3450 | |
| Wheelbase(mm) | 5000+1350 | |
| Front/Rear Overhang( mm) | 1500/725 | |
| Wheel Track(Front/Rear)(mm) | 2022/1850 | |
| Min. Ground Clearance(mm) | 314 | |
| Approach/Departure Angle( °) | 16/70 | |
| Max. Speed (km/h) | 92 | |
| Max. Gradebility (%) | ≥40 | |
| Bucket Size | 7500*2300*1800mm | |
