Product Details:
|
| BOX VOLUME: | 20 CBM | LIFT SYSTEM: | FRONT LIFT |
|---|---|---|---|
| FRONT AXLE: | 9 TONS | REAR AXLE: | 16 TONE |
| CABIN: | ONE BED | LOADING: | 15-20 TONS |
| Drive Wheel: | 6x4 | Fuel Type: | Diesel |
| Condition: | New | Transmission Type: | Manual |
| Highlight: | heavy dump truck,mining dump truck |
||

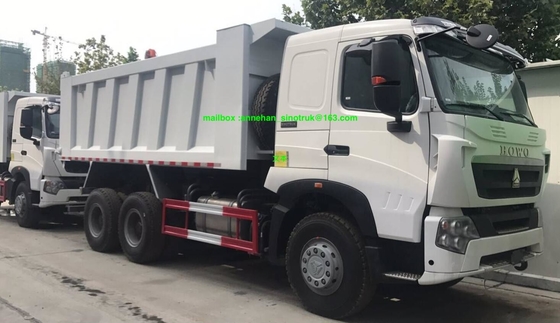

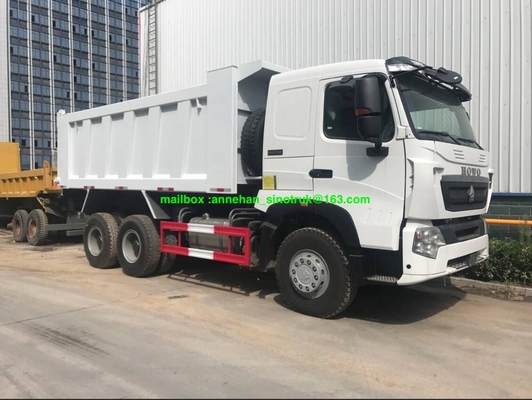

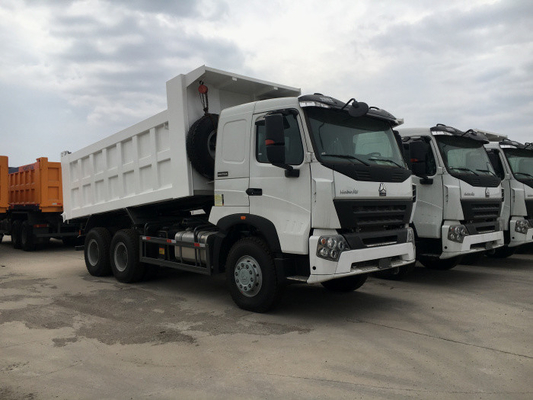

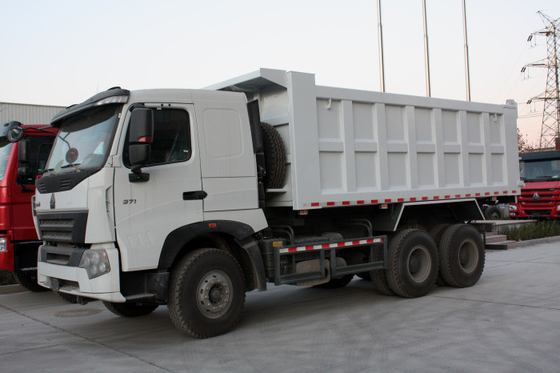

HOWO A7 20 Tons Commercial Heavy Duty Dump Truck One Bed For Mining Model ZZ3257N3847N1
Description:
This model can meet the requirements of severe environment like construction site and
mining area.which can fullfiled you of short distance transportation of mining rock and
soil as well as engineering construction.
Specifications:
| GVW25000kg Driving Type 6x4 | ||
| Model | ZZ3257N3847N1 | |
| Cab | A7-W | |
| Engine(Hp) | 371 | |
| Power(Kw) | 273 | |
| Transmission | HW19710 | |
| Front Axle | HF9 | |
| Steering | ZF8118 | |
| Rear Axles | HC16 | |
| Wheels & Tyres | 315/80R22.5. | |
| Carriage Internal Dimensions(mm) | 5600x2300x1550 | |
| Cubage (m3) | 20 | |
| Steel thickness of Carriage(mm) | Floor:8mm/Side:6mm | |
| Hydraulic Lift of Carriage | Middle Lift | |
| Dimensions(mm) | 8700×2550×3600 | |
| Kerb weight (Kg) | 12270 | |
| Engine | Model | WD615.47 |
| Horsepower | 371 | |
| Maximum output Kw/r/min | 273/2200 | |
| Maximum torque N.m/r/min | 1460/1300-1600 | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
| Bore x Stroke | 126x130mm | |
| Valve | 2 | |
| Displacement | 9.726L | |
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | ||
| Cab | SINOTRUK A7-W cab,single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.MTCO Traveling data recorder. | |
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | |
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes. | |
| Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance, | |
| Rear Axles | SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | |
| Brake System |
Service brake:dual circuit compressed air brake . Parking brake (emergency brake):spring energy,compressed air operating on rear wheels Auxiliary brake:engine exhaust valve brake.EVB,ABS. |
|
| Wheels & Tyres | 10 hole-steel ;Tyres:315/80R22.5 tubeless tyre with 1 Spare tire. | |
| Electrics |
Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|
| Oil Tank | Square type-300L Aluminum alloy fuel tank | |
| Weight in kg |
Gross vehicle weight 25000 Front axle loading capacity 9000 Rear axles loading capacity 2x16000 |
|
| Performance |
Maximum driving speed (km/h) 75 Fuel consumption (1/100 km) 38 |
|
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | |
Competitive Advantage:
1) excellant apperance of cabin, safety, reliable
2) you can choose cargo body with Front lifting type or Middle lifting type which you prefered
3) all kinds of cargo body structure can be designed and produced according to your request,
make it have light curb weight , high rigidity , high loading capacity
4) with all kinds of truck model, which can fulfil your requirements
5) professional import and export dealing precedure, make customs clearance more high efficiency
6) using the high strength steel, make it has a long service life
7) strong enough engine
8) The hydraulic sytem using HYVA brand or Domestic famouse brand
9) quick and efficient spare parts supply bring you more convenient
10) fast delivery time, we can arange production according to your needs exactly and quickly
11) competive price, cost-effective
12) The optimized hydraulic control system helps to avoid wrong operation, it has higher
safety and running efficiency.
13) low fuel consumption
