Product Details:
|
| Drive Type: | 6×4 | Engine: | WD615.69, 336HP |
|---|---|---|---|
| Wheel Base: | 4300+1350(mm) | Gross Weight: | 25000 Kg |
| The Curb Weight: | 14750(Kg) | Max. Speed: | 95km/h |
| Fire Pump: | CB10/60(65mm) | Capacity Of Tank Body: | 15-20CBM |
| Highlight: | fire engine truck,foam fire truck |
||

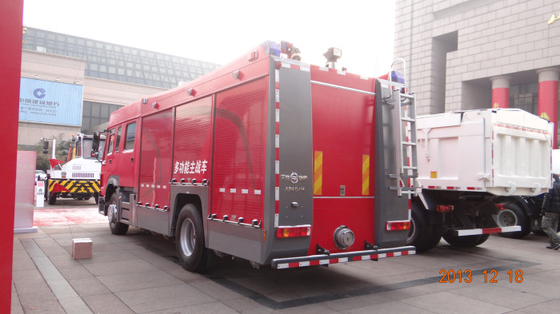

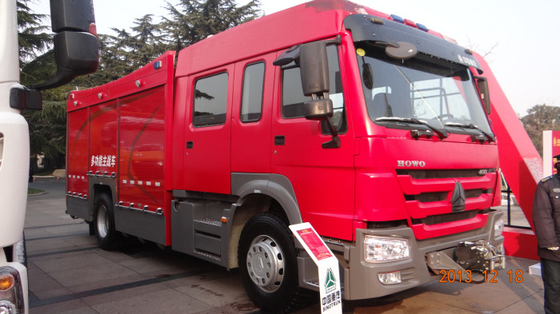

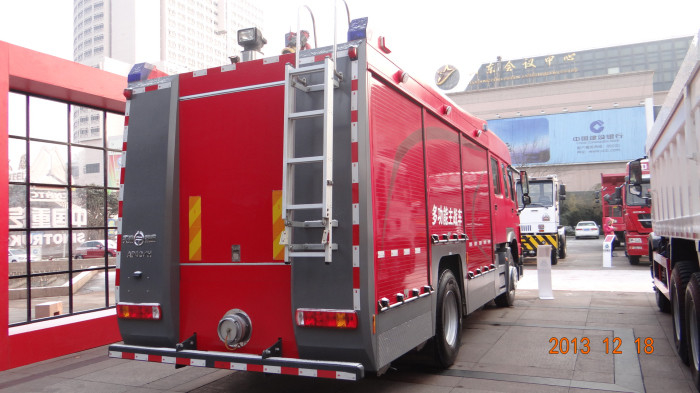

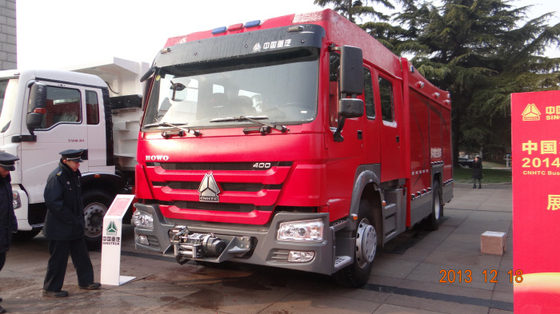

Fire Fighting Truck SINOTRUK HOWO 20CBM LHD 6X4 for Fire control or landscaping
Description:
Fire Fighting Truck SINOTRUK HOWO 20CBM LHD 6X4 for Fire control or landscaping
The fire truck, also known as the fire engine, is specially used for fire or other emergency using vehicles. Fire engines can be classified according to the functions of water tank fire truck, foam fire truck, agricultural fire truck, fire fighting and sprinkling truck and other special using vehicles. Fire engines usually stationed at the fire station, met the alarm by firemen to drive the scene. SINOTRUK HOWO series fire truck chassis modified liquid carrying capacity of 8 tons, 12 tons, 16 tons of water tankers, foam fire truck and other products.
Specification:
| Fire Fighting Truck SINOTRUK HOWO 20CBM LHD 6X4 for Fire control or landscaping | |
| Chassis Model | ZZ1257N4341W |
| Drive Type | 6×4 |
| Engine | WD615.69, 336HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
| Transmission | HW13710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | HC16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20, Radial tyre |
| Wheel base | 4300+1350(mm) |
| Capacity of tank body | 15-20CBM |
| Fire pump | CB10/60(65mm) |
| Flow quantity | low pressure 60L/S middle pressure :30 L/s |
| Fire monitor | PS50 working rage(water ≥65m) |
| Overall dimension | 9800×2600×3710mm |
| The curb weight | 14750(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
Applications:
Fire Fighting Truck with fire trucks and sprinkler functions, range and pressure can reach the same
level as the fire truck, suitable for landscaping, fire sprinkler, fire fighting, mine dust, living area fire,
power plant fire.
Competitive Advantage:
1)competitive price, cost-effective
2) Cab space is spacious, can take the 8-10 person, equipped with a dedicated fire fighters.
3)Equipped with better communication equipment, such as GPS, car radio, alarm, 12/24v power outlet.
4) The big size of the rocker switch, anti slip handrails, step lamp, car lamp switch, brings more
convenient to firefighters.
5) fast delivery time, we can arrange production according to your needs exactly and quickly
6) the key parts adopt the world's top technology products
7)based on strong technical support and top level technology make the trucks with high quality and more reliable
8) with all kinds of truck model, which can fulfill your requirement
9) quick and efficient spare parts supply bring you more convenient
10) SINOTRUK Fire Fighting Truck have strong power, short acceleration time, compact structure, occupant space, low floor, convenient to staff on and off.
11)professional import and export dealing procedure, make customs clearance more high efficiency
