Product Details:
|
| HORSE POWER: | 371HP Heavy Duty Dump Truck | RANGE OF APPLICATION: | Mining Industry, Construction Business, Docks And So On |
|---|---|---|---|
| MAX SPEED: | 75KM/H | AXLE: | 3 |
| BOX VOLUME: | 20 CBM | LIFTING: | HYVA |
| Highlight: | heavy dump truck,mining dump truck |
||

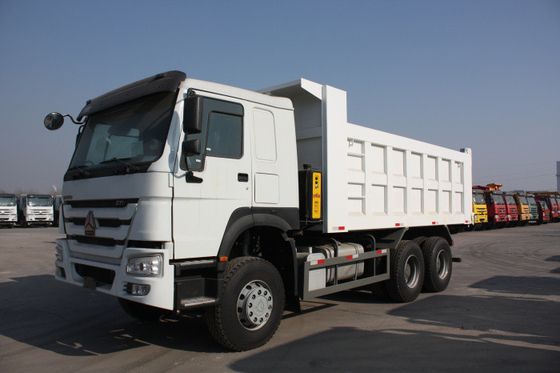

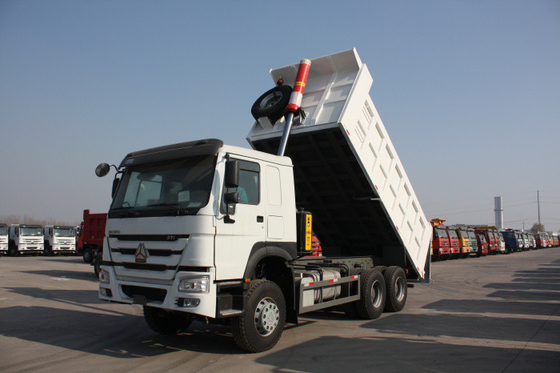

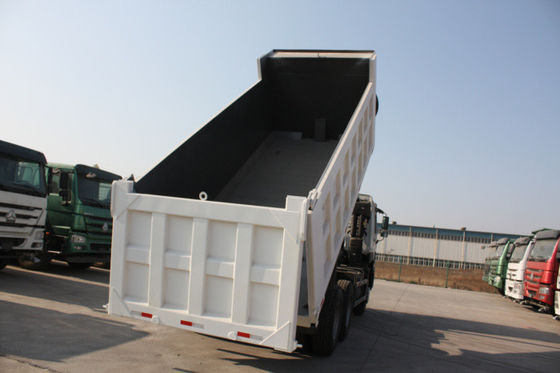

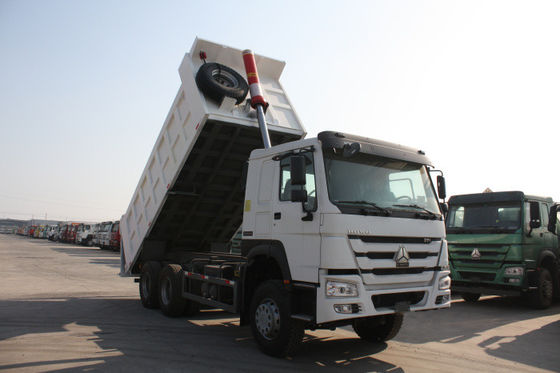

30 TONS HEAVY TIPPER SINOTRUK HOWO FOR MINING COLOR OPTINAL MODEL ZZ3257N3847A/N0WA
Description:
This model can meet the requirements of severe environment like construction site and
mining area.which can fullfiled you of short distance transportation of mining rock and
soil as well as engineering construction.
Specifications:
| tem | SINOTRUK 6×4 HOWO TIPPER TRUCK 371HP |
| Truck model | ZZ3257N3847A/N0WA |
| Maximum output |
273(371)/2200 |
| Engine model | WD615.47 371HP EUR 2 |
| Clutch | Single-plate dry coil-spring clutch, diameter 420 mm,hydraulically operating with air assistance |
| Front Axles | HF9 9000kg Drum |
| Rear Axles | HC16 16TON |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Tires | 12.00-20 tube Option: 12R20 tube, 12R24 tube, 12R22.5 tubeless |
| Air conditioner | With safety belts for driver and co-driver;With air conditioner |
| Transmission | HW19710 10 Speeds / HW19712, 12 speeds |
| Export Markets | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
| Loading Capacity |
30 tons |
| Driver's Cab | HW76,one bunk |
| Cargo box | 5800× 2300×1400mm bottom:8mm side: 6mm, front lift |
Competitive Advantage:
1) you can choose cargo body with Front lifting type or Middle lifting type which you prefered
2) excellant apperance of cabin, safety, reliable
3) all kinds of cargo body structure can be designed and produced according to your request,
make it have light curb weight , high rigidity , high loading capacity
4) professional import and export dealing precedure, make customs clearance more high efficiency
5) strong enough engine
6) using the high strength steel, make it has a long service life
7) with all kinds of truck model, which can fulfil your requirements
