Product Details:
|
Material: | Q345 | COLOR: | Optional |
---|---|---|---|
Box Size: | 8000×2300×1500 | Loading: | 50tons |
LIFTING SYSTEM: | HYVA | Product Name: | Dump Truck |
Highlight: | heavy dump truck,mining dump truck |

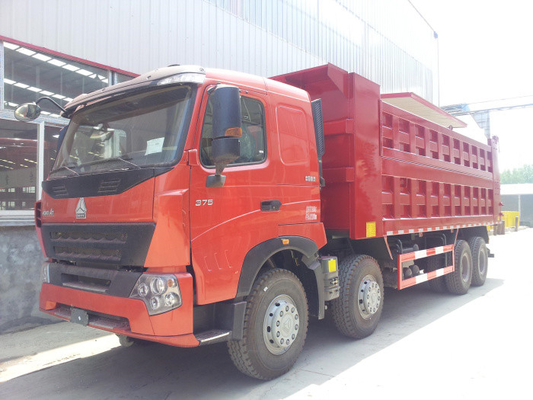

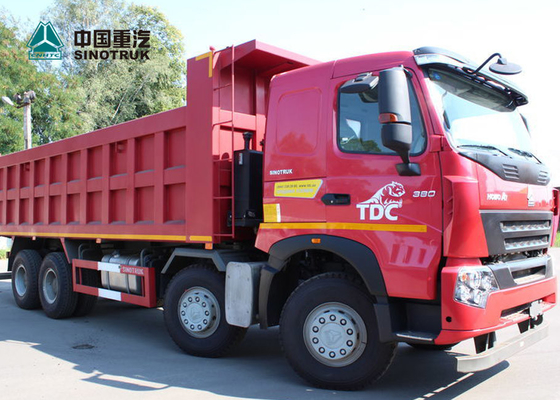

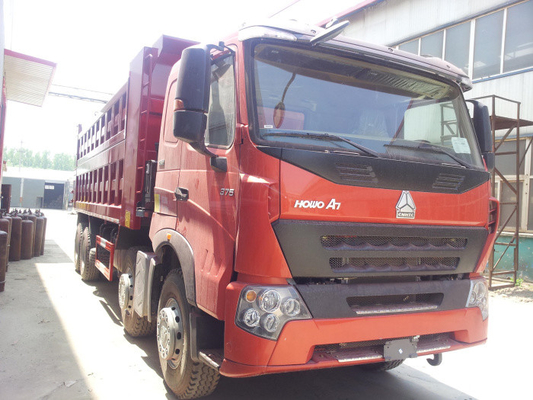

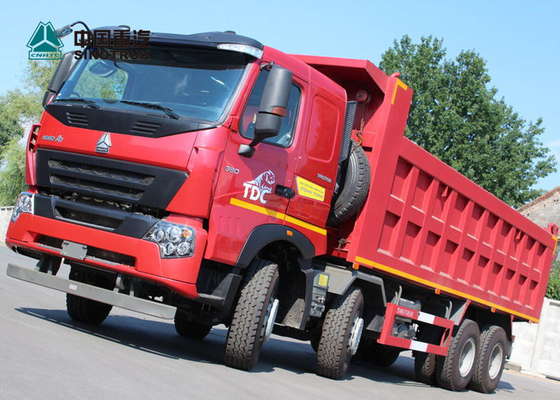

50 TONS HOWO A7 8×4 DUMP TRUCK FOR MINING MODEL ZZ3317N4647N1
Dump Truck Description:
This model can meet the requirements of severe environment like construction site and
mining area.which can fullfiled you of short distance transportation of mining rock and
soil as well as engineering construction.
Dump Truck Specifications:
GVW30000kg Driving Type 8x4 | ||
Model | ZZ3317N4647N1 | |
Cab | A7-W | |
Engine(Hp) | 371 | |
Power(Kw) | 273 | |
Transmission | HW19710 | |
Front Axle | HF9 | |
Steering | ZF8118 | |
Rear Axles | HC16 | |
Wheels & Tyres | 8.5/12.00R20 | |
Carriage Internal Dimensions(mm) | 8000x2300x1700(“U” type) | |
Cubage (m3) | 33.3 | |
Steel thickness of Carriage(mm) | Floor:8mm/Side:6mm | |
Hydraulic Lift of Carriage | Front Lift | |
Dimensions(mm) | 11345×2550×3650 | |
Kerb weight (Kg) | 15880 | |
Engine | Model | WD615.47 |
Horsepower | 371 | |
Maximum output Kw/r/min | 273/2200 | |
Maximum torque N.m/r/min | 1460/1300-1600 | |
Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
Bore x Stroke | 126x130mm | |
Valve | 2 | |
Displacement | 9.726L | |
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | ||
Cab | SINOTRUK A7-W Lengthen cab,single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner | |
Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |
Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | |
Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes. | |
Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance. | |
Rear Axles | SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | |
Brake System |
Service brake:dual circuit compressed air brake |
|
Wheels & Tyres | Rims:8.5-20,10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. | |
Electrics |
Operating voltage:24V,negative grounded |
|
Oil Tank | Square type-300L Aluminum alloy fuel tank | |
Weight in kg |
Gross vehicle weight 30000 |
|
Performance |
Maximum driving speed (km/h) 75 |
|
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
Competitive Advantage:
a. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
b. Reliable, safe and comfortable appearance
c. Low oil consumption.Sinotruk adopt the engine that combin the MAN and steyr technolgoy,it has the perfect oil performance.
d. High technology make the truck much more perfect than other brand trucks!
g. Customization service, as per your request, we will customize our production for you
