Product Details:
|
| Type: | 6*4 | Horsepower: | 371HP |
|---|---|---|---|
| Fuel Tank: | 400L | Wheel Base: | 3600+1350mm |
| Cab: | HW76 Long Cab, One Bunk | Steering: | ZF8118 Hydraulic Steering With Power Assistance |
| Color: | White | Product Name: | Heavy Duty Dump Truck |
| Tank Volume: | 6m3-12m3 | Made In: | CHINA |
| Highlight: | heavy dump truck,sinotruk howo dump truck |
||

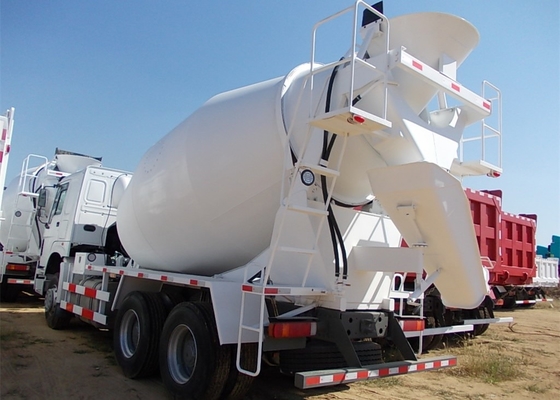

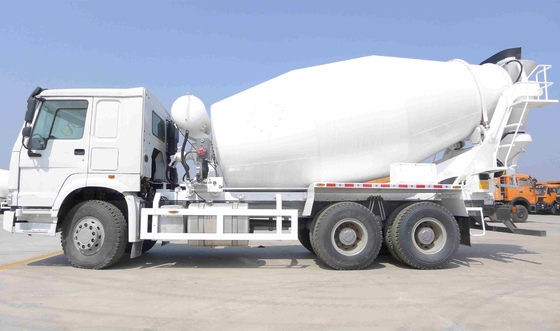

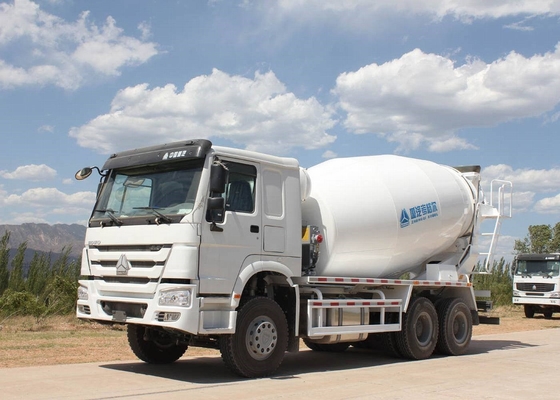

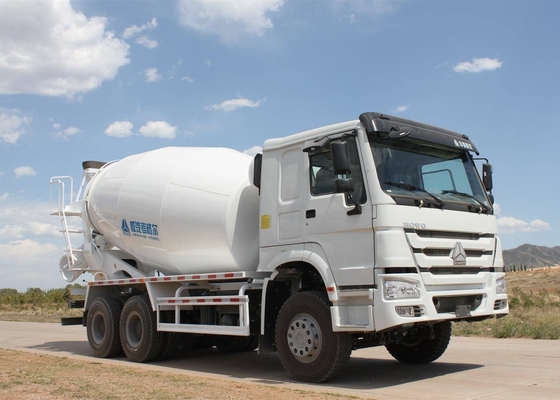

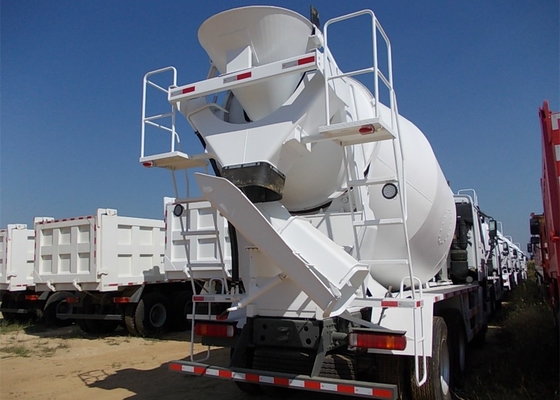

HOWO cement mixer truck Heavy Duty Dump Truck 10 wheels Euro 2 400L Fuel tank
Description:
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
3). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
| Chassis & Add Components | |
| Model | ZZ1257N3641W |
| Engine | |
| Model | WD615.47 |
| Power | 371hp |
| Emission | EURO II |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
| Kind of Fuel | Diesel |
| Gear Box | HW19710 transmission ,10 forward and 2 reverse |
| Axles | |
| Front Axle Model | HF9 axle. Capacity: 9000kg |
| Rear Axle | HC16 axle. Capacity:2X 16000kg |
| Brake System | |
| Service brake | ABS |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Auxiliary brake | Engine exhaust brake |
| Steering system | |
| Model | ZF8118 |
| Type | hydraulic steering with power assistance |
| Wheels & Tyres | |
| Type | 12.00R20 |
| Cabin |
HW76 long cab, one bunk, air conditioner.
|
