Reliable Mining Dump Truck Front Lifting Dump Truck 32 Tons Load Diesel Fuel Type

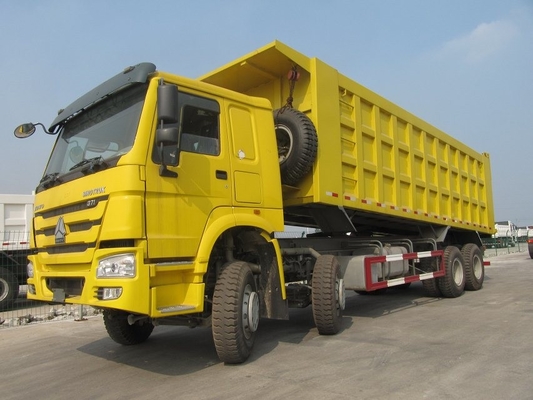

Large Image : Reliable Mining Dump Truck Front Lifting Dump Truck 32 Tons Load Diesel Fuel Type

Product Details:

Place of Origin:	SHANDONG
Brand Name:	SINOTRUK HOWO Heavy Duty Dump Truck
Certification:	CCC,ISO
Model Number:	ZZ3317N4267A

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$35,000~$55,000 per Unit
Packaging Details:	nude
Delivery Time:	30-45 Days
Payment Terms:	LC,TT
Supply Ability:	300 Units Per Month

Contact Now

Reliable Mining Dump Truck Front Lifting Dump Truck 32 Tons Load Diesel Fuel Type

Description

Brand:	HOWO Heavy Duty Dump Truck	Color:	White Red Yellow
Drive Wheel:	8*4	Capacity (Load):	32-50 Tons
Fuel Type:	Diesel	Lift Type:	Front Lift System
Highlight:	heavy dump truck , sinotruk howo dump truck

371HP Front Lifting Dump Truck Heavy Duty Dump Truck 32 Tons Load

Product Description:

1, high-duty steel:main beam,side beam and key parts use domestic advanced technology standardlow-alloy and high-strengthsteel.

2, low consumption:light weight cut down fuel use and save transportation cost.

3, high return:reduce self-weight,increace customer's transportation profit.

Truck Model :	ZZ3317N4267A
Truck Brand :	SINOTRUK – HOWO
Driving Style :	Left Hand Driving
Dimension (LWH)(unloaded)(mm) :	10825×2496×3590
Cargo body size (LWH, mm) :	7800×2300×1500
Cargo thickness (mm):	Bottom: 8
Cargo thickness (mm):	Side: 6
Lift type of Carriage :	Front lifting
Approaching angle / Departure angle (°) :	19/22
Overhang(front / rear)(mm) :	1500/1975
Wheel base (mm):	1800+4200+1350
Max speed (km/h) :	75
Curb weight (kg) :	15480
Loading Weight (kg) :	31000
Fuel tanker capacity (L) :	300
Fuel consumption (L/km) :	28L/100
Clutch :	Single-plate dry clutch Φ 430mm
Fuel type :	Diesel
Horse Power, max (kw/rpm) :	371HP
Emission :	EURO II
Transmission :	HW19710 , 10 forwards and 2 reverse
Brake system :	Dual circuit compressed air brake
Parking brake :	spring energy, compressed air operating on rear wheels
Auxiliary brake :	Engine exhaust brake
Steering system :	ZF8118 hydraulic steering with power assistance
Front axle :	HF9 , Steering with double T-cross section beam
Rear axle :	HC16,Pressed axle housing,central double reduction with differential locks between axles and wheels
Color :	Optional( White , Red , yellow or as your needs )
Tyre :	12.00R20
Cab :	HOWO76 cab,single sleeper with air conditioner all-steel forward control,55º hydraulically tiltable to the front,2-arm windscreen wiper system with three speeds,laminated windscreen with casted-inradio aerial,hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat,with heating and ventilating system,outer sun visor,adjustable roof flap,with stereo radio/cassette recorder safety belts and adjustable steering wheel,air horn,with 4-point support fully floating suspension and shock absorbers
