Product Details:
|
Product Name: | HOWO 4X2 Dump Truck | Drive Tyre: | 4x2 |
---|---|---|---|
Model: | ZZ3167M3811 | Engine: | WD615.62,Euro 2 |
Horsepower: | 266hp | Transmission: | HW19710 |
Tyre: | 12.00R20 | Color: | Ooptional |
Highlight: | sinotruk howo dump truck,heavy dump truck |

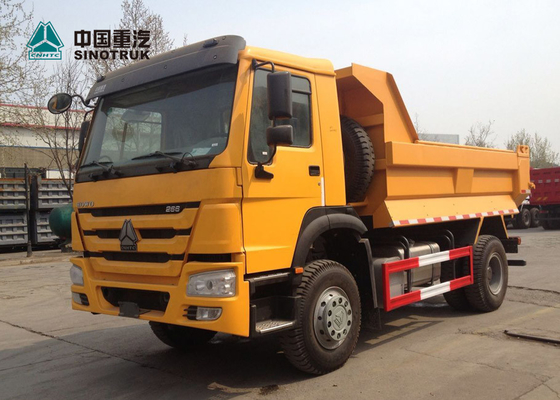

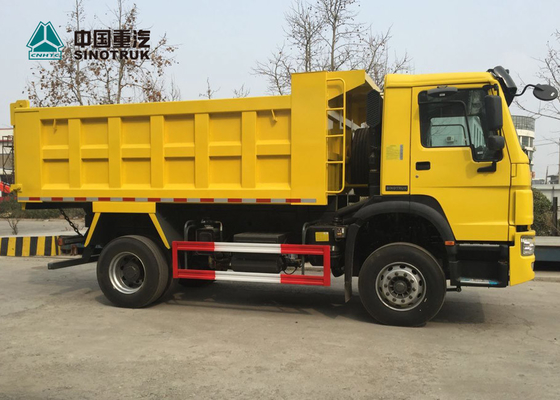

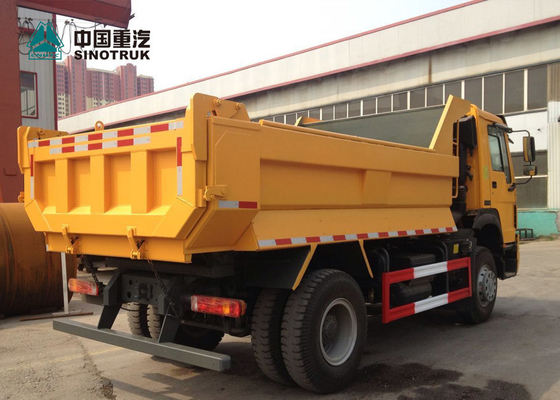

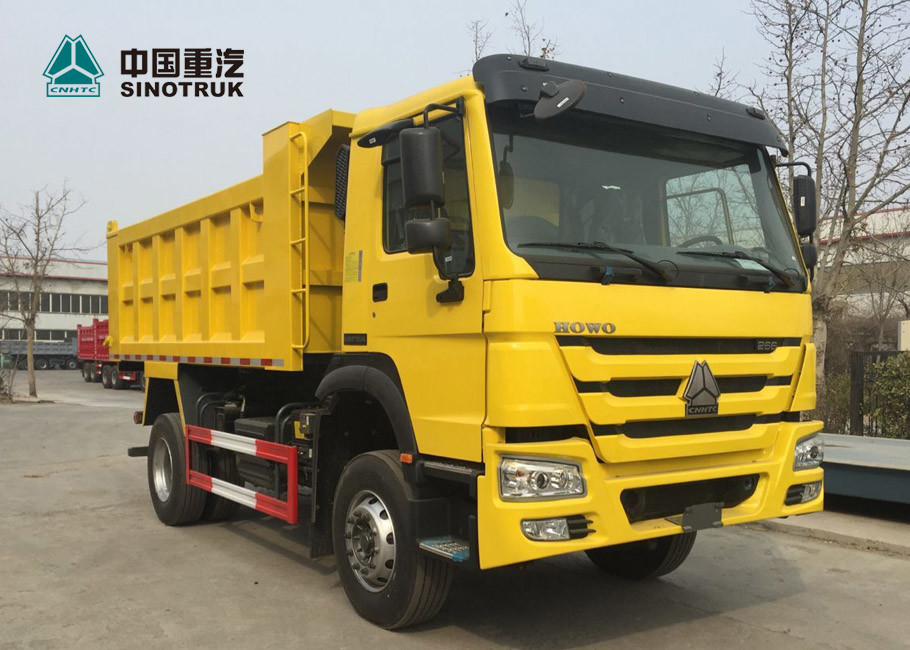

SINOTRUK HOWO 266hp Heavy Duty Truck Trailers 4x2 6 Wheels Mini Dump Truck
Description:
SINOTRUK HOWO Dump Truck 266HP 4X2 16tons 9-15CBM ZZ3167M3811
This type truck is the famouce brand of CNHTC group in abroad marketing. it also have a large exporting quantity in recently years, and make a big effort for local infrastructure construction.This type truck need more wide road for the lenght of the whole truck is longer than 6X4 and 4X2 type truck. full expression of heavy duty truck concept. Delicate design, excellent technology, which have the advantages of Comfort, safety, reliability, electronic level geared to international level. Low fuel consumption.
It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works
Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and 10×4 etc.
Power range: 266PS - 420PS.howo Leader In Heavy Duty Truck Industry Driving King On The Road
New HOWO dump truck, High Quality , More Lighter,
High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.
Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system
Product parameters
Chassis Model | ZZ3167M3811 |
Driving Type | LHD (RHD is optional) |
Cabin | HW70, without sleeper, two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber. |
Engine |
Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.87, Euro 2, 290 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
Transmission |
HW13710, 10F & 2R, with PTO Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
Front Axle |
HF9,1x9000 KGS Steering with doubleT-cross section beam |
Rear Axle |
HC16, 1x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:5.73 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis |
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
Brake |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Electrics |
Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Tyres | 12.00R20, radial tyres with one spare tyre |
Fuel Tank | 300L |
Cargo Body | 4200*2300*1500 mm, 14.5 CBM, Floor 8mm Side 6mm |
Overall Dimension | 7000*2500*3500mm |
Applications:
It used for Mining industry, Construction business, docks and so on.
Competitive Advantage:
1.All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity
2.Using the high strength steel, make it has a long service life
3.The optimized hydraulic control system helps to avoid wrong operation, it has higher
safety and running efficiency.
4.Excellant apperance of cabin, safety, reliable
5.Low fuel consumption
6.Strong enough engine
7.With all kinds of truck model, which can fulfil your requirements
8.The key parts adopt the world's top technology products
9.Based on strong technical support and top level technology make the trucks with high quality and more reliable
10.Competive price, cost-effective
11.Quick and efficient spare parts supply bring you more convenient
12.Fast delivery time, we can arange production according to your needs exactly and quickly
13.Professional import and export dealing precedure, make customs clearance more high efficiency
