Product Details:
|
| Name: | HOWO 6X4 Heavy Duty Dump Truck | Drive Model: | 6x4 |
|---|---|---|---|
| Engine: | 371 | Gearbox: | HW19710 |
| Front Axle: | HF9 | Rear Axle: | HC16 |
| Lifting Type: | Middle Lifting System | Body Size: | 5600x2300x1500mm |
| Highlight: | sinotruk howo dump truck,heavy dump truck |
||

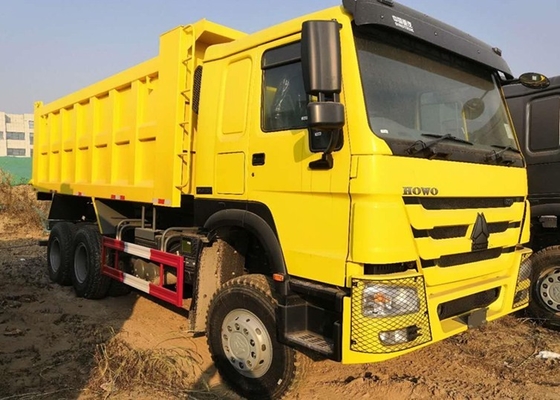

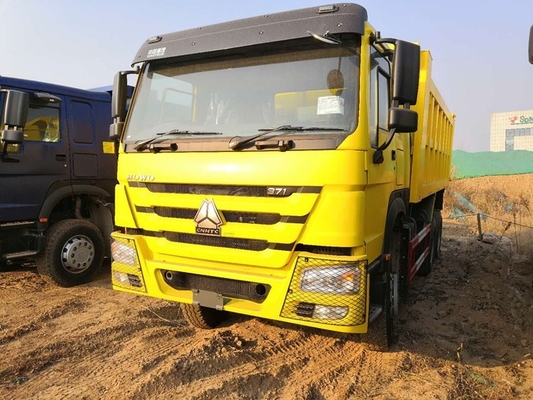

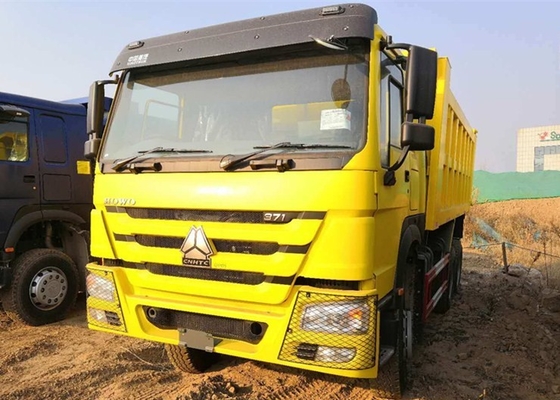

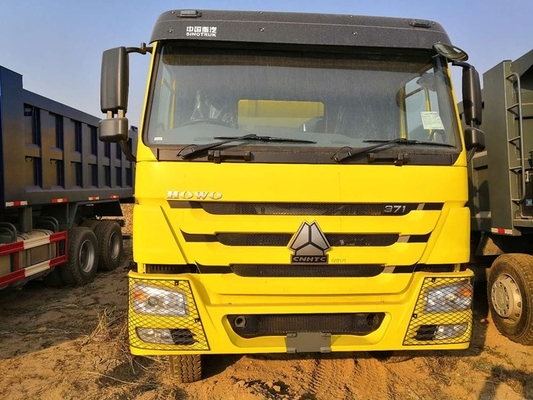

371HP 6 X 4 20CBM Heavy Duty Dump Truck Dual - Circuit Air Pressure Brake
| Vehicle series | HOWO-7 6x4 Tipper | |
| Cab | HW76 | |
| Engine | Model | Euro 3:WD615.95C/WD615.96C |
| Power(Ps/rpm) | 249/1900;279/2000 | |
| Maximum torque(Nm/rpm) | 1490/1200-1500;1590/1200-1500 | |
| Displacement(L) | 9.726 | |
| Transmission | SINOTRUK HW series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction. with PTOWD615.95C,WD615.96CstandardHW19710 | |
| Clutch | Φ430diaphragm spring Clutch,Hydraulic control air assisted. WD615.95Cstandard430B ,WD615.96Cstandard430A | |
| Front axle | HF9 drum-type, rated load of 9t | |
| Rear axle | HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73, 4.8 | |
| Steering system | ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa | |
| Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer |
| Drive Axle | front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer. | |
| Braking system | Service brake | dual-circuit air pressure brake |
| Parking Brake | spring storage energy without air | |
| Auxiliary brake | Engine exhaust braking. standard Engine EVB,ABS, optional auto clearance adjusting arm. | |
| Electric system | Voltage | 24V |
| Generator | 2240W | |
| Batteries | 12V/165Ah,2 pieces | |
| Starter Power | 24V,7.5kW | |
| Wheels & Tyres | Tyres | 12.00R20 |
| Optional | 12.00R24,12.00-24 | |
| Fuel Tank | Capacity | 300 Liter |
| Weights (kg) | Curb weight(vehicle/chassis) | 12170/8630;12290/8660;12450/8690;12270/8710 |
| Gross Vehicle Weight | 25000 | |
| Rated load | 12420~12700 | |
| Vehicle Dimensions (mm) | Overall length x Overall width x Overall height | (7545~8545)×2496×3170/3450 |
| Wheelbase | (3225~3825)+1350 | |
| Front/rear overhang(vehicle/chassis) | 1500/(1470/715);1500/(1670/740);1500/(1870/900) | |
| Wheel track of front axle | 2041 | |
| Wheel track of rear axle | 1830/1850 | |
| Performance | Maximum speed(km/h) | 79/83 |
| Maximum gradeability(%) | 20 | |
| Minimum turning diameter(m) | 15/16/17 | |
Jinan Heavy Truck Import & Export Co., Ltd. is a professional heavy duty truck manufacturer in China. We focus on the export and service of all kinds of heavy duty trucks, machinery and original spare parts.
As a member of SINOTRUK, our main products are SINOTRUK HOWO, HOWO A7,T7H, STEYR, STEYR KING, GOLDEN PRINCE (SWZ10), HOKA, HOHAN and HOVA brand series trucks, including Head tractor trucks (Prime movers), Dump trucks (Tippers), Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks, Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and so on.
With good communication and services, our company has exported our products to Nigeria, Angola, Ghana, Libya, Cameroon, Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudan, Egypt and other African countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina in South America; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines,Malaysia, Indonesia, Pakistan, Brunei and Bangladesh in Asia and other countries and regions.
Our company is located in Jinan City, the capital of Shandong Province. Jinan is an old base of China's industry and an old industrial base, which means that there are many industrial manufacturers in Jinan, forming a chain of production, without transportation costs. Adhering to the principle of "honest and trustworthy", we promise to try our best to provide the most efficient services for worldwide customers.
