Product Details:
|
| BOX VOLUME: | 30CBM | FRONT AXLE: | HF9 |
|---|---|---|---|
| LIFT SYSTEM: | FRONT LIFT | Name: | Heavy Duty Dump Truck |
| ENGINE: | 380HP | TRANSMISSION: | HW19710 |
| CARRIAGE INTERNAL DIMENSIONS: | 8000*2300*1600 | STEEL THICKNESS OF CARRIAGE: | FLOOR:8MM,SIDE:6MM |
| Highlight: | sinotruk howo dump truck,heavy dump truck |
||

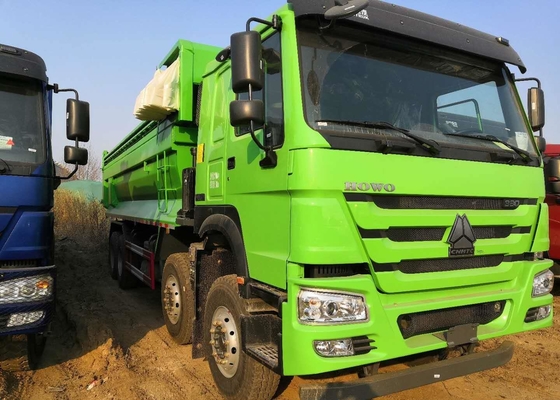

HOWO Dump Truck Rear Dump Truck Heavy Duty Dump Truck 30 Cubic Meter Dump Truck
Simple, easy operation and automotive style comfort along with combined service points and extended service intervals means more focus on the work to be done, more time on the job, less time and money spent on servicing.
Technical Parameters of Heavy Duty Dump Truck
| Vehicle series | HOWO 8x4 Tipper Dump Truck | |
| Cab | HW76 | |
| Engine | Model | D10.38-40 |
| Power(Ps/rpm) | 380PS | |
| Maximum torque(Nm/rpm) | 1340-1590NM | |
| Displacement(L) | 9.726 | |
| Transmission | SINOTRUK HW series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction. with PTO, HW19710 | |
| Clutch | Φ430diaphragm spring Clutch,Hydraulic control air assisted. WD615.95Cstandard430B ,WD61596Cstandard430A | |
| Front axle | HF9 drum-type, rated load of 9t | |
| Rear axle | HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73,4.8 | |
| Steering system | ZF8118 steering gear, ZF steering oil pump, system pressure 18MPa | |
| Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer |
| Drive Axle | front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer. | |
| Braking system | Service brake | dual-circuit air pressure brake |
| Parking Brake | spring storage energy without air | |
| Auxiliary brake | Engine exhaust braking. standard Engine EVB,ABS, optional auto clearance adjusting arm. | |
| Electric system | Voltage | 24V |
| Generator | 2240W | |
| Batteries | 12V/165Ah,2 pieces | |
| Starter Power | 7.5kW | |
| Wheels & Tyres | Tyres | 12.00R20 |
| Optional | 12.00R24,12.00-24 | |
| Fuel Tank | Capacity | 300 Liter |
| Weights (kg) | Curb weight(vehicle/chassis) | 14830/10080;15130/10150;15200/10200;15200/10460 |
| Gross Vehicle Weight | 31000 | |
| Rated load | 15670~16040 | |
| Vehicle Dimensions (mm) | Overall length x Overall width x Overall height | 11350×2496×3500 |
| Wheelbase | 1800+3800+1350 | |
| Front/rear overhang(vehicle/chassis) | 1500/(1795/750);1500/(1895/920);1500/(2095/935);1500/(2100/1065) | |
| Wheel track of front axle | 2041 | |
| Wheel track of rear axle | 1830 | |
| Performance | Maximum speed(km/h) | 79/83 |
| Maximum gradeability(%) | 20 | |
| Minimum turning diameter(m) | <24 | |
Application
Advantage
Competitive Advantage of Heavy Duty Dump Truck:
Q1: I want the tires are radial tires, is it ok ?
A: We can make the tires as your requirement to suit your country's need.
Q2: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and
management team!
We always attach great importance to quality controlling from the very beginning!
Q 3: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 4: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade
assurance, and the deposit will given to Alibaba. if we don’t delivery products on
time, the deposit will return to you.
Q 5: What's the delivery time ?
A: The delivery time is within 15 working days after receiving your advance payment.
Q 6: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and
trailers.
And we are well capable in offering overseas after-sales service. Besides, we also
provide rational packing and shipping program,let shipment save money and security.
