Product Details:
|
Clutch: | Single-plate Dry Diaphragm-spring Clutch | Front Axles: | HF7/HF9, 7000kg/9000kg |
---|---|---|---|
Tires: | 12.00-20 Tube Option: 12R20 Tube, 12R24 Tube, 12R22.5 Tubeless | Transmission: | HW15710/HW19710, 10 Speed |
Driver's Cab: | HW76 Standard Cab, Single Bunk | Product Name: | SWZ Heavy Duty Dump Truck |
Highlight: | sinotruk howo dump truck,heavy dump truck |

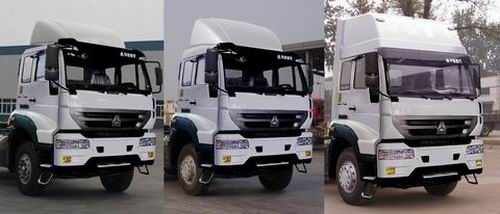

4X2 Heavy Duty Dump Truck 336hp Tractor Trailer Truck ISO / CCC Passed
Minimum Order Quantity: | 1 unit |
Price: | Negotiable |
Packaging Details: | Nude |
Delivery Time: | Within 20-30 days after the receipt of the deposit |
Payment Terms: | LC/TT etc |
Supply Ability: | 100 units per week |
SINOTRUCK HOWO series trucks own the elegant appearance, strong operation system and excellent safety.
Jinan Heavy Truck Import & Export Co. ,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, STEYR, STEYR KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
Item | SINOTRUK SWZ 4X2 TRACTOR TRUCK |
Truck model | ZZ4181M3611C |
Maximum output |
336 hp (247 Kw) at 2200 rpm |
Engine model | WD615.47, Euro II emission standard |
Clutch | Single-plate dry diaphragm-spring clutch, diameter 430 mm, hydraulically operating with air assistance |
Front Axles | HF7/HF9, 7000kg/9000kg |
Rear Axles | ST13/ST16, 13000kg/16000kg |
Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
Tires | 12.00-20 tube Option: 12R20 tube, 12R24 tube, 12R22.5 tubeless |
Air conditioner | With safety belts for driver and co-driver;With air conditioner |
Transmission | HW15710/HW19710, 10 speed |
Export Markets | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
Loading Capacity |
8-20 ton |
Driver's Cab | HW76 Standard cab, single bunk |
