Product Details:
|
| Hydraulic Lift Of Carriage: | T Model (ventral Lift)/ Front Lift | Driver's Cab: | No Sleeper/one Sleeper/ Two Sleepers, TECHNOLOGY |
|---|---|---|---|
| Tires: | 12.00R20 Radial Tire,13 Pcs Option: Nylon Tire | Engine Model: | 290/336/371HP, EURO II |
| Max Driving Speed: | 50km/h | Steering: | ZF8098, GERMANY |
| Highlight: | sinotruk howo dump truck,heavy dump truck |
||

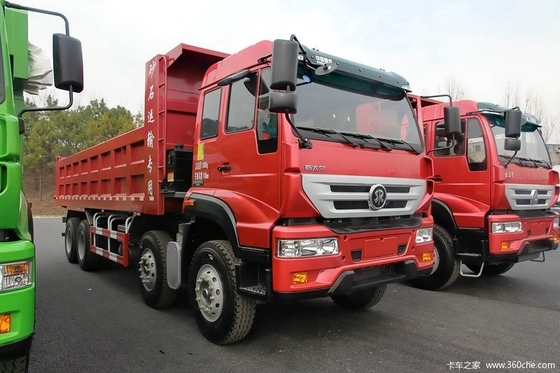

SINOTRUK SWZ 8x4 Dump Tipper/ Tipper Truck/
Special Dump Truck in Red Color HF12 Front Axles for 55 Ton
Dumper truck is mainly composed of a chassis, a hydraulic lifting mechanism, a cargo compartment and a power take-off device, and is used for transporting coal, stones, earth slabs, asphalt, and the like. Because the loading compartment can automatically dump a certain angle of unloading, greatly saving unloading time and labor, shortening the transportation cycle, improving production efficiency and reducing transportation costs.
Specifications:
| Item | SINOTRUK SWZ 8X4 DUMP TRUCK |
| Truck model | ZZ3317N3867B |
| Max driving speed: |
50km/h
|
| Engine model | 290/336/371HP, EURO II |
| Carriage internal size: |
6200/6500/6800/7000/7500/7800/8200/8500*2300*800/1000/1200/1450/1500mm;volume:18-32.5m3 Thickness: bottom 8/10/12mm, sides: 4/6/8/10mm
|
| Front Axles | HF12, 12000KG |
| Rear Axles | HC16,2*16000kg |
| Steering | ZF8098, GERMANY |
| Tires | 12.00R20 Radial tire,13 pcs Option: nylon tire |
| Air conditioner | With safety belts for driver and co-driver |
| Transmission | HW15710/ HW19710, 10F&2R |
| Export Markets | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|
Loading Capacity |
25-55ton |
| Driver's Cab | No sleeper/one sleeper/ two sleepers, TECHNOLOGY |
| Hydraulic Lift of Carriage | T model (ventral lift)/ front lift |
