Product Details:
|
| Product Name: | Factorty Directly Howo 6x4 5400x2300x1500mm 18CBM Heavy Duty Dump Truck | Model: | ZZ3257N3647A |
|---|---|---|---|
| Cabin: | HOWO 76 Cabin, Single Sleeper, Safety Belts ,with A/C & Radio | Engine: | Sinotruk WD615.47, 371hp, Euro II Emission |
| Front Axle: | HF9, Capacity Of 9000kg | Drive Axle: | HC16, Hub Reduction Drive Axle, Ratio:4.42, Capacity Of 2x16000kg |
| Body Dimension: | 5400*2300*1500mm | Tyre: | 12.00R20 With One Spare Tyre |
| Highlight: | sinotruk howo dump truck,heavy dump truck |
||

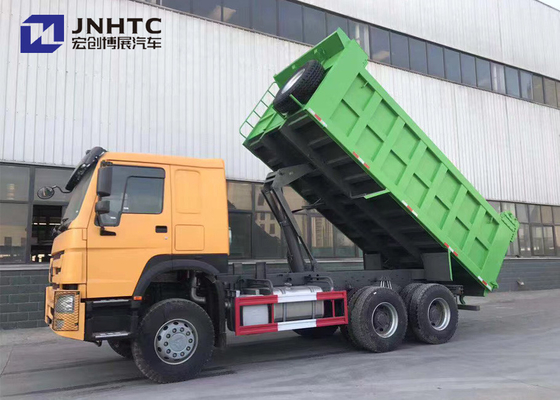

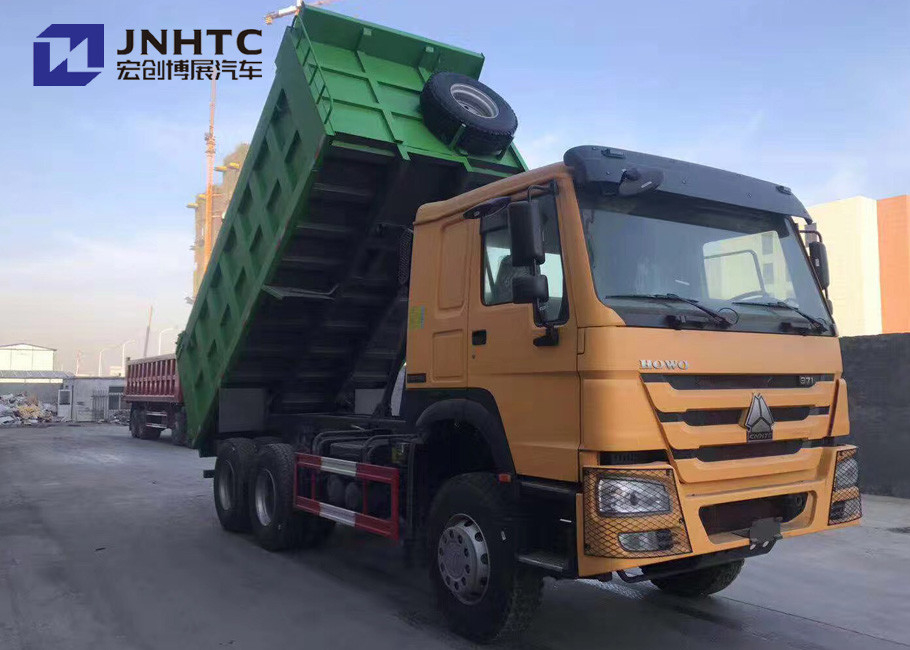

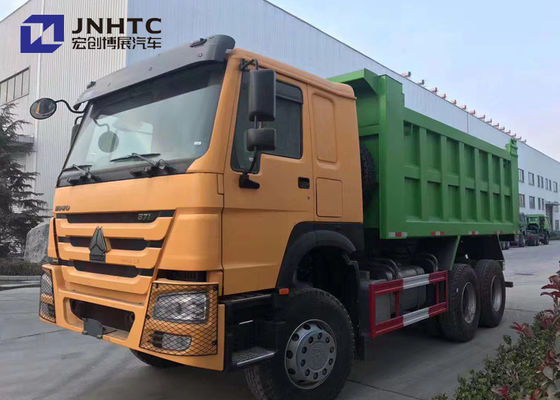

Howo 6x4 18CBM Commercial Dump Truck Heavy Duty 5400x2300x1500mm Long Life
Factorty Directly Howo 6x4 5400x2300x1500mm 18CBM Heavy Duty Dump Truck
According to clients' requirements, we can customize different loading capacity and volume.
The popular dump truck models include: sinotruck HOWO 336hp 6X4 10 wheeler 16 cubic meters dump truck, sino truck 371hp ten wheeler 20 cubic meters dump truck, SINOTRUK howo 8X4 12 wheeler 40tons end dump truck and so on.
Specification
| Chassis Model | ZZ3257N3647A |
| Driving Type | LHD (RHD is optional) |
| Cabin | HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber. |
| Engine |
Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.69, Euro 2, 336 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Transmission |
HW19710, 10F & 2R, with PTO Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
| Front Axle |
HF9,1x9000 KGS Steering with doubleT-cross section beam |
| Rear Axle |
HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:5.73 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis |
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
| Brake |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics |
Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tyres | 12.00R20, radial tyres with one spare tyre |
| Fuel Tank | 300L |
| Cargo Body | 5400*2300*1450 mm, 18 CBM, Floor 8mm Side 6mm |
| Overall Dimension | 8750*2550*3450mm |
Production Details
Cabin Details
Chssis Details
Competitive Advantage:
1. competive price, cost-effective
2. with all kinds of truck model, which can fulfil your requirements
3. all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4. using the high strength steel, make it has a long service life
5. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6. excellant apperance of cabin, safety, reliable
7. quick and efficient spare parts supply bring you more convenient
8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9. The hydraulic sytem using HYVA brand or Domestic famouse brand
10. low fuel consumption
11. strong enough engine
12. fast delivery time, we can arange production according to your needs exactly and quickly
13. professional import and export dealing precedure, make customs clearance more high efficiency
Production Process
About Company
Jinan Heavy Truck Import & Export Co., Ltd. is a professional heavy duty truck manufacturer in China. We focus on the export and service of all kinds of heavy duty trucks, machinery and original spare parts.
As a member of SINOTRUK, our main products are SINOTRUK HOWO, HOWO A7,T7H, STEYR, STEYR KING, GOLDEN PRINCE (SWZ10), HOKA, HOHAN and HOVA brand series trucks, including Head tractor trucks (Prime movers), Dump trucks (Tippers), Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks, Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and so on.
With good communication and services, our company has exported our products to Nigeria, Angola, Ghana, Libya, Cameroon, Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudan, Egypt and other African countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina in South America; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines,Malaysia, Indonesia, Pakistan, Brunei and Bangladesh in Asia and other countries and regions.
Our company is located in Jinan City, the capital of Shandong Province. Jinan is an old base of China's industry and an old industrial base, which means that there are many industrial manufacturers in Jinan, forming a chain of production, without transportation costs. Adhering to the principle of "honest and trustworthy", we promise to try our best to provide the most efficient services for worldwide customers.
