Product Details:
|
| Product Name: | New Model SINOTRUK HOHAN HOWO N7B 6x4 371HP 20cbm HYVA Front Lifting Cylinder Dump Truck | Drive Model: | 6x4 |
|---|---|---|---|
| Cabin: | H77L | Engine: | WD615.47 Euro2 371HP |
| Product Type: | Heavy Duty Dump Truck | Drive Axle: | HC16*2 |
| Body Dimension: | 5600*2300*1500mm | Tyres: | 12.00R20 |
| Highlight: | sinotruk howo dump truck,heavy dump truck |
||
New Model SINOTRUK HOHAN HOWO 6x4 371HP 20cbm HYVA Front Lifting Cylinder Heavy Duty Dump Truck
Dump Truck
| Vehicle series | HOHAN N7B 6x4 Dump Truck | |
| Cab | H77L | |
| Engine | Model | Euro 2:WD615.47 |
| Power(Ps/rpm) | 273/2200 | |
| Maximum torque(Nm/rpm) | 1500 | |
| Displacement(L) | 9.726 | |
| Transmission | SINOTRUK HW19710 series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction. | |
| Clutch | Φ430diaphragm spring Clutch,Hydraulic control air assisted. | |
| Front axle | HF9 drum-type, rated load of 9t | |
| Rear axle | HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73, 4.8 | |
| Steering system | ZF8118 steering gear, ZF steering oil pump, system pressure 18MPa | |
| Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer |
| Drive Axle | front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer. | |
| Braking system | Service brake | dual-circuit air pressure brake |
| Parking Brake | spring storage energy without air | |
| Auxiliary brake | Engine exhaust braking. | |
| Electric system | Voltage | 24V |
| Generator | 2240W | |
| Batteries | 12V/165Ah,2 pieces | |
| Starter Power | 24V,7.5kW | |
| Wheels & Tyres | Tyres | 12.00R20 |
| Optional | 12.00R24,12.00-24 | |
| Fuel Tank | Capacity | 300 Liter |
| Weights (kg) | Curb weight(vehicle/chassis) | 12170/8630;12290/8660;12450/8690;12270/8710 |
| Gross Vehicle Weight | 25000 | |
| Rated load | 12420~12700 | |
| Vehicle Dimensions (mm) | Overall length x Overall width x Overall height | (7545~8545)×2496×3170/3450 |
| Wheelbase | (3225~3825)+1350 | |
| Front/rear overhang(vehicle/chassis) | 1500/(1470/715);1500/(1670/740);1500/(1870/900) | |
| Wheel track of front axle | 2041 | |
| Wheel track of rear axle | 1830/1850 | |
| Performance | Maximum speed(km/h) | 79/83 |
| Maximum gradeability(%) | 20 | |
| Minimum turning diameter(m) | 15/16/17 | |

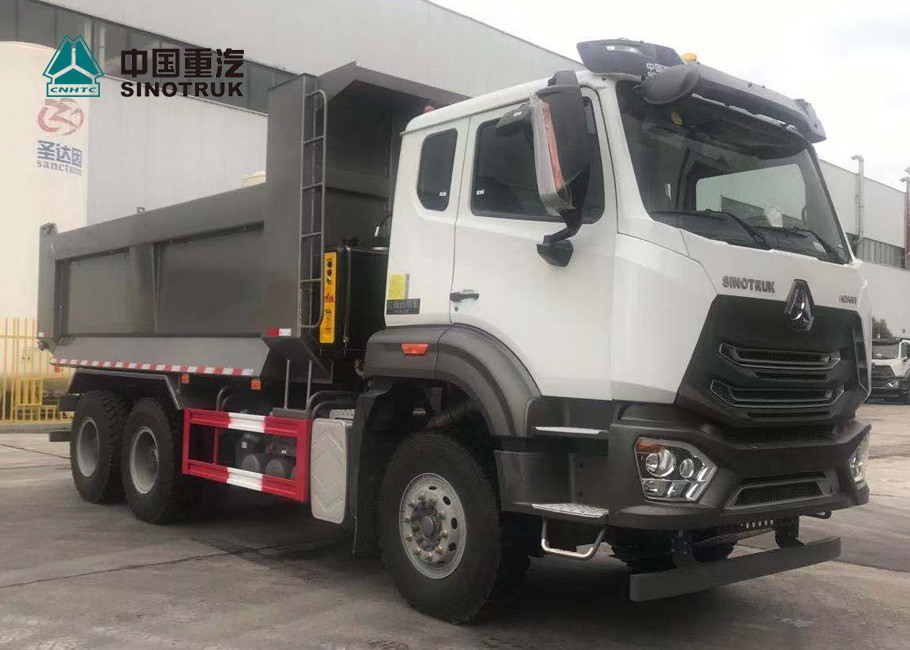

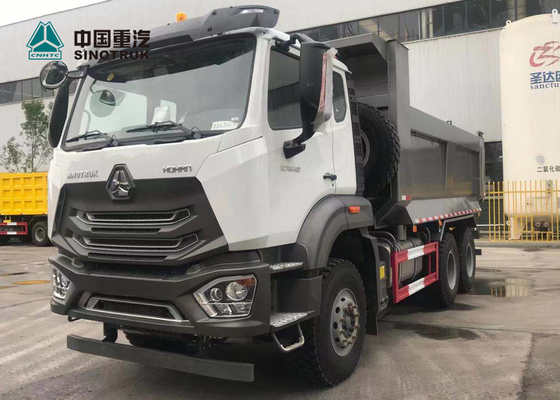

Picture of Heavy Duty Dump Truck
Competitive Advantage:
1. competive price, cost-effective
2. with all kinds of truck model, which can fulfil your requirements
3. all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4. using the high strength steel, make it has a long service life
5. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6. excellant apperance of cabin, safety, reliable
7. quick and efficient spare parts supply bring you more convenient
8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9. The hydraulic sytem using HYVA brand or Domestic famouse brand
10. low fuel consumption
11. strong enough engine
12. fast delivery time, we can arange production according to your needs exactly and quickly
13. professional import and export dealing precedure, make customs clearance more high efficiency
