Product Details:
|
| Drive Wheel: | 6x4 | Engine Capacity: | > 8L |
|---|---|---|---|
| Fuel Type: | Diesel | Condition: | New |
| Gross Vehicle Weight: | 31000 | Transmission Type: | Manual |
| Capacity (load): | 51 - 60t | Horsepower: | 351 - 450hp |
| Emission Standard: | Euro 2 | Transmission: | HW19710 |
| Color: | Customer's Request | Engine: | WD615.47 |
| Highlight: | 371hp Heavy Duty Dump Truck,sinotruk howo 6x4 dump truck,78km/h Heavy Duty Dump Truck |
||
SINOTRUCK HOWO A7 DUMP TRUCK 6x4
Description:
| Truck Model No: | ZZ3257M3247N1 A7E/300/K32/6*4WA |
| Gross weight kg | 25000 |
| curb weight kg | 11950 |
| Rated load quality kg | 12920 |
| Max. Speed (Km/h) | 78 |
| Cab | A7-W low floor board long cab with one sleeper, with air conditioner |
|
Engine
|
Make : SINOTRUK Diesel: 4-stroke direct injection diesel engine Engine model : WD615.87, EURII emission , new design on intake & exhaust system, power and fuel economy get improved 6-cylinder in-line with water cooling, turbo-charging and intercooling Max. output : 336Hp (221 Kw ) at 2200 rpm Displacement : 9.726L |
|
Transmission |
HW15710 ,10gear transmission SINOTRUK 10 forward & 2 Ratio:14.28 Torque: 1900Nm |
| clutch | SINOTRUK Φ430 C size clutch |
|
Driving Axle
|
AC16 Strengthen widen whole steel-cast 16T off road axle with double decelerator and double tires Ratio:4.77 |
| Front axle |
HF9 steel-cast 9T font axle,stick brake |
|
Braking system
|
Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option:ABS |
| Electrical System | Operating voltage:24V, negative grounded |
| Steering | ZF8098 German Hydraulic steering with powder assistance |
| Wheel & Tyres |
12.00-20 No.of Tyres:10+1 |
| No. of Spring | 10/12 |
| Front/ Rear axles loading capacity (kg) | 7000 /18000 |
| No. of axles | 3 |
| Wheel base mm | 3225+1350 |
| Front/ Rear wheel track mm | 2041/1830 |
| Front/Rear hanging mm | 1540/1550 |
| Approach/ Departure angle (°) | 20 /29 |
| Dimensions(L×W×H) (mm) | 7665*2496*3490 |
| Van dimension mm |
4800*2300*1500 F style lifting cylinder Thickness: floor 8mm side 6mm |

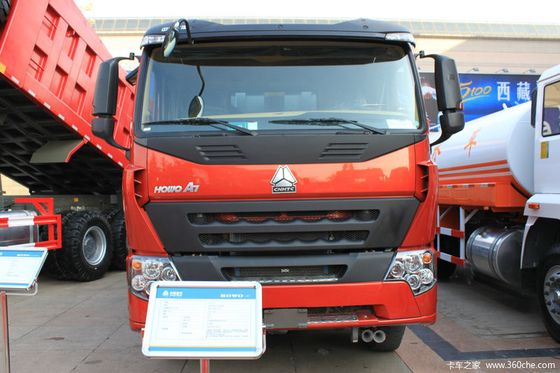

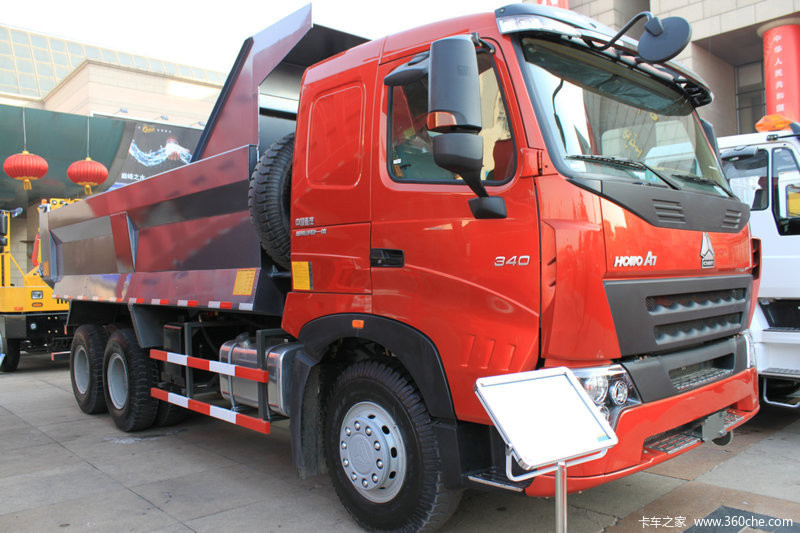

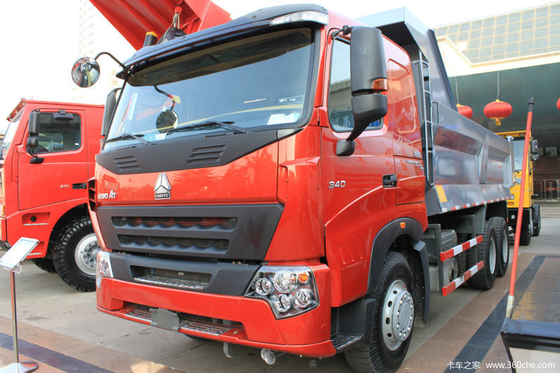

Detail images
