336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire

336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire
336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire
336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire 336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire 336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire 336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire 336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire 336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire

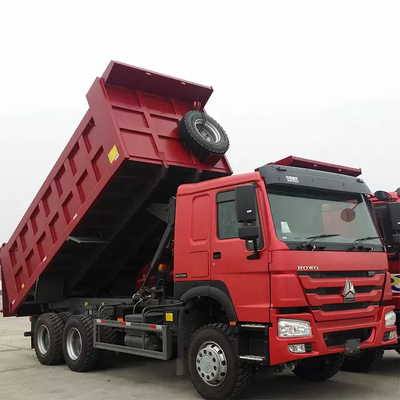

Large Image :  336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire

Product Details:
Place of Origin: china
Brand Name: Sinotruk
Certification: iso ccc
Model Number: Howo7
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Packaging Details: nude
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 200units /month
Contact Now

336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire

Description
Drive Wheel: 6x4 Engine Capacity: 6 - 8L
Dimensions (l X W X H) (mm): 7545x2496x3170 Fuel Type: Diesel
Condition: New Product Name: Dumper Truck,SINOTRUK Heavy Duty 336HP 6x4 Drive Wheel HOWO Dump Truck,JAPAN HINO 8*4 Heavy Duty Dump Truck Tipper Truck,truck Dump Heavy Duty Door Pivot Hinge.door Hinges For Steel Frame.,tipper Truck
Highlight:

18m3 heavy duty dump truck

,

336hp heavy duty dump truck

,

ZZ3257N3447A1


Product Overviews

Ethiopia 336hp 18M3 dump truck 10 pcs triange brand tire with Euro2 mid lifting

Model ZZ3257N3447A1 GCW40000kgs Driving Type 6×4
Engine Engine model WD615.69, Euro II emission standard, 4 stroke injection diesel engine,
6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output 336PS (247kW) at 2200 rpm
Maximum torque 1350Nm at 1100-1600rpm
Bore 126mm Stroke: 130mm
Displacement 9.726L
Compression ratio 17.5:1
Specific fuel consumption ≤198g/kWh
Engine oil filling quantity 23L
Air compressors WABCO Twin cylinders air compressors;
Cooling system filling quantity
(long-term filling)		 40L
Clutch SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission Transmission, model HW19710, 10 forward and 2 reverse
Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle New HF9 series, with drum brake system
Steering with double T-cross section beam
Rear Axle HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Ratio: 5.73
Chassis Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe
Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: semi-elliptic leaf springs and bogie springs
Spare wheel carrier: with one spare wheel

Steering		 ZF8098, hydraulic steering with power assistance
Ratio: 22.2-26.2:1
Braking System Front and rear drum brake, four-circuit protection valve
Service brake dual circuit compressed air brake
Parking Brake spring energy, compressed air operating on rear wheels
Auxiliary brake engine exhaust brake
Wheel & Types Rims 8.5-20,10 hole-steel
Types 12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20
Product Details

336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire 0336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire 1

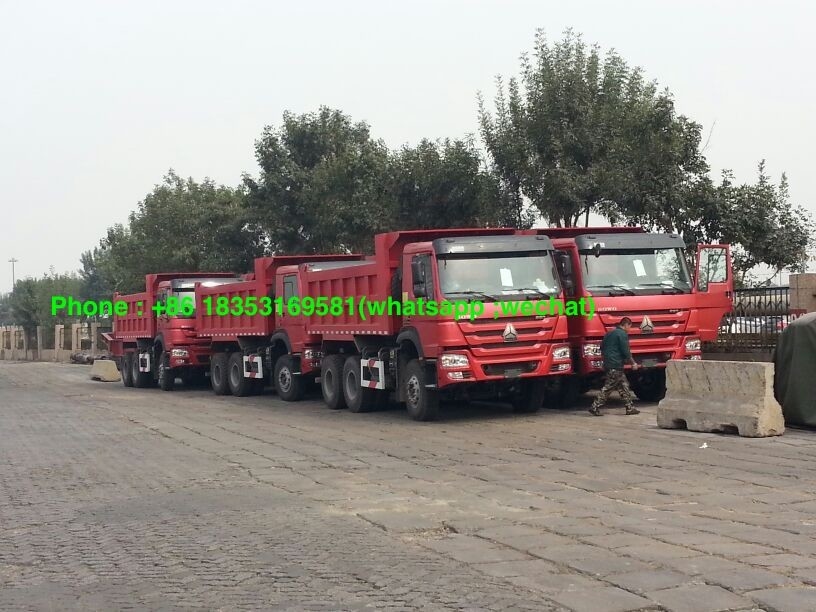

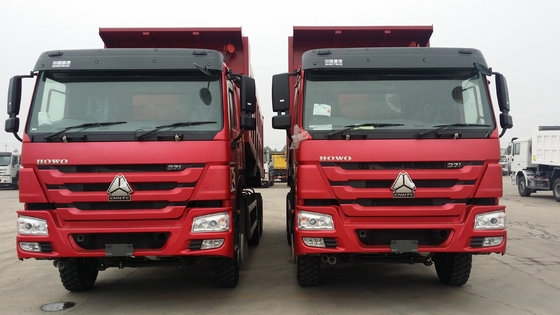

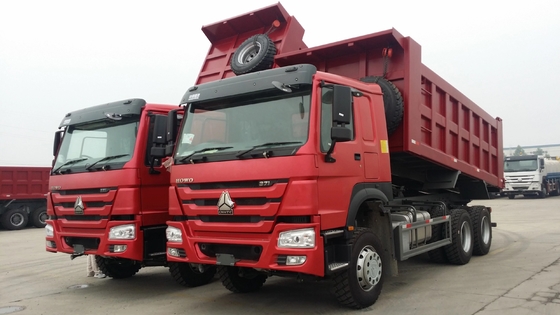

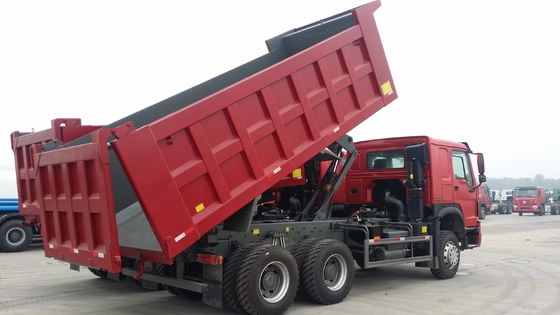

Product Display

336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire 2336hp 18m3 Heavy Duty Dump Truck 10 Pcs Triange Brand Tire 3
