Product Details:
|
Drive Wheel: | 6x4 | Engine Capacity: | > 8L |
---|---|---|---|
Condition: | New | Gross Vehicle Weight: | 25000 |
Transmission Type: | Manual | Capacity (load): | 21 - 30t |
Horsepower: | 351 - 450hp | Emission Standard: | Euro 4 |
Transmission: | HW19710 | Color: | Customer's Request |
Engine: | 10.38-40 | Cab: | HW76 |

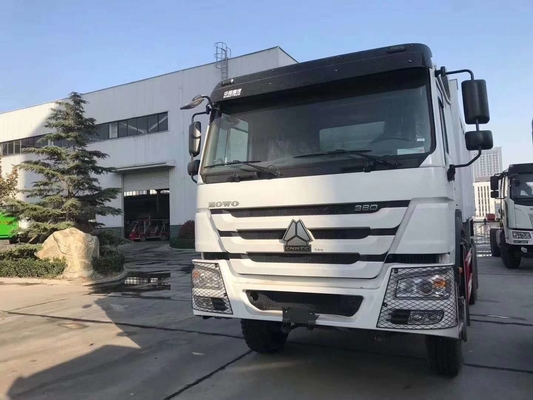

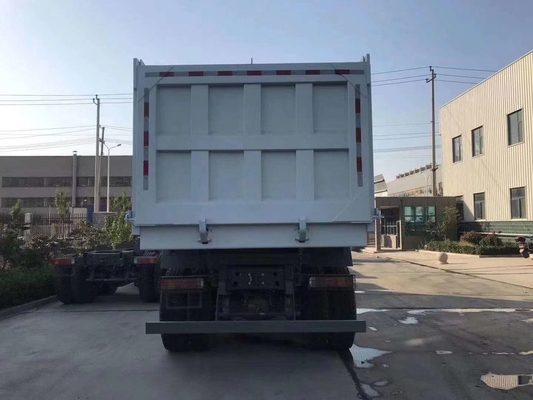

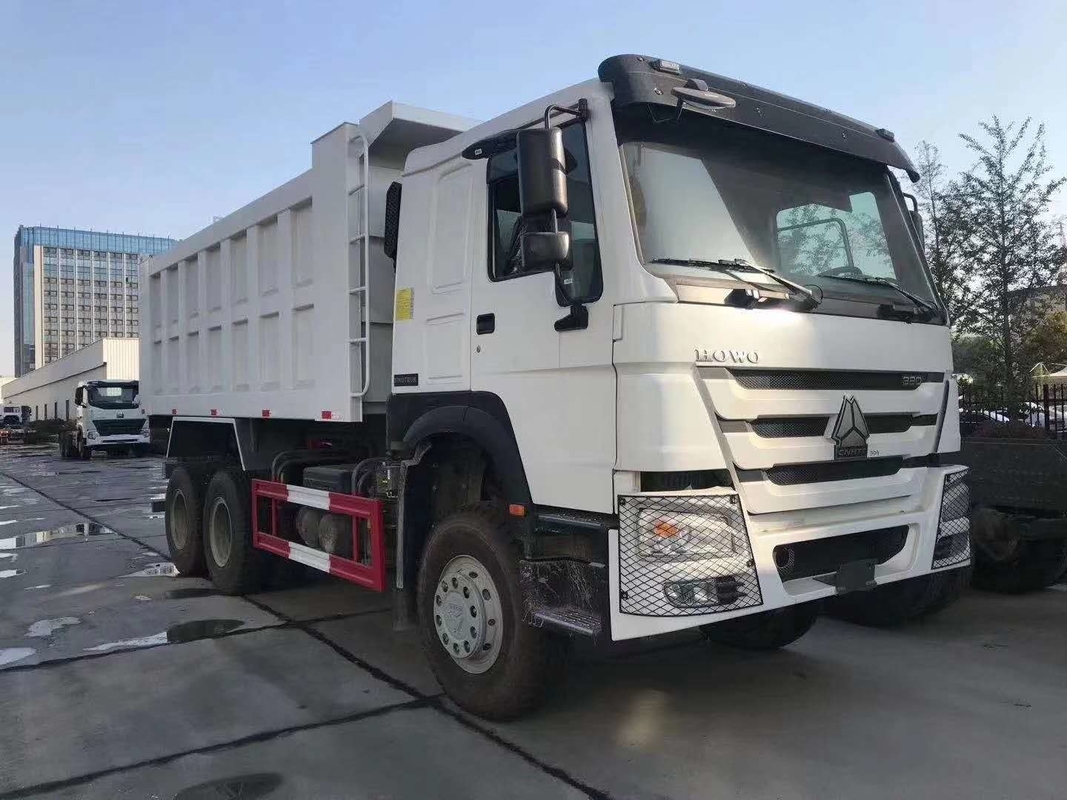

Highlight: | 20 Cubic Howo Dump Truck,Sinotruk Howo Dump Truck,380hp Howo Dump Truck |
Production descreption
Model
|
ZZ3257N3847D1
|
Drive type
|
6x4
|
Brand
|
HOWO
|
Engine
|
WD10.38-40, 380hp, EURO4
|
Engine Type
|
6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
|
Displacement(L)
|
9.726
|
Maximum output (Kw/r/min)
|
273/2200
|
Valve
|
2
|
Rated Quality(kg)
|
12600,12410
|
Kerb mass (kg)
|
12270,12460
|
Wheel base (mm)
|
3825+1350
|
Tire
|
11.00-20,12.00-20 18PR
|
Overhang(front/rear)
|
1500/1939,1500/1870
|
Appearance dimensions (mm)
|
8545*2496*3170
|
Box dimensions(mm)
|
5800*2300*1090
|
Max. speed (km/h)
|
75
|
Passengers
|
2
|
Approach/Departure(°)
|
19/23
|
Total mass(kg)
|
25000
|
Fuel
|
Diesel
|
Fuel tank capacity (L)
|
300L
|
Axle
|
3
|
Axle Load
|
7000/18000
|
Front axle
|
SINOTRUK HF9 Front Axle
|
Front axle loading capacity (kg)
|
9000
|
Rear axle
|
SINOTRUK HC16 Heavy reduction drive axle
|
Rear axles loading capacity(kg)
|
2*16000
|
Front Tread
|
2022,2041
|
Rear Tread
|
1830/1830
|
Coefficient of load mass utilization
|
1.00
|
Transmission
|
HW19710, 10 forward&2 reverse Manual
|
PTO
|
HW50
|
Steering
|
German ZF8098 Steering Gear Box (left-hand drive)
|
