Product Details:
|
| Drive Wheel: | 6x4 | Dimensions (l X W X H) (mm): | 8545*2496*3170mm |
|---|---|---|---|
| Fuel Type: | Diesel | Condition: | New |
| Gross Vehicle Weight: | 25000 | Transmission Type: | Manual |
| Capacity (load): | 21 - 30t | Horsepower: | 351 - 450hp |
| Highlight: | 40t Sinotruk HOWO Dump Truck,30t Sinotruk HOWO Dump Truck,25cbm Sinotruk HOWO Dump Truck |
||

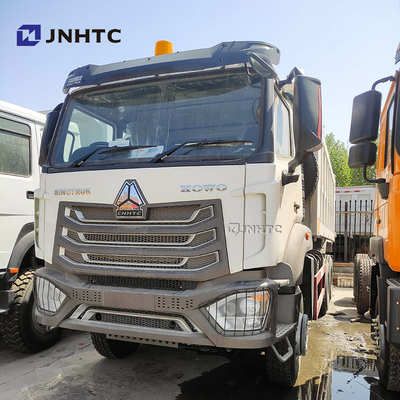

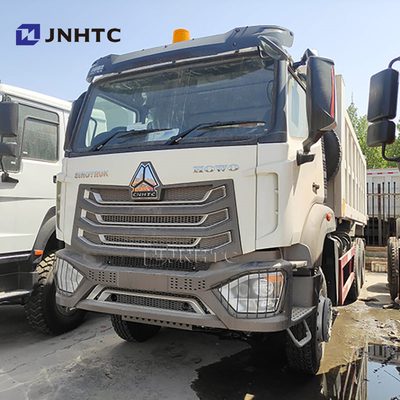

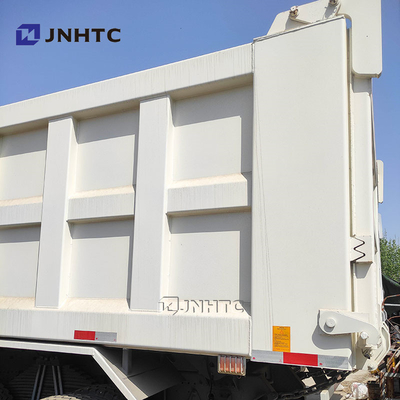

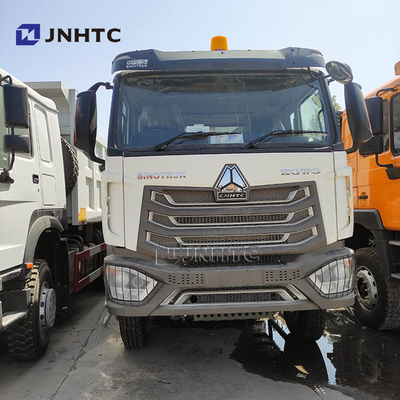

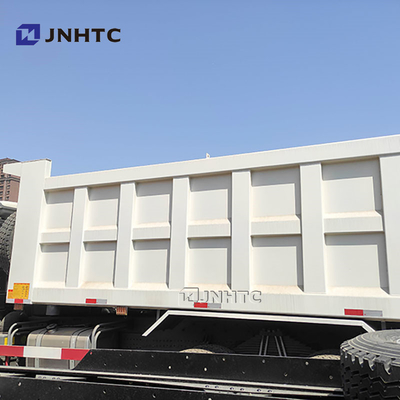

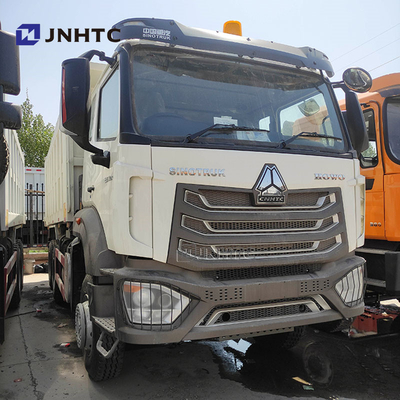

Hot Sale 6x4 10 Wheel Howo NX Tipper Dumper Tipping
The structure of the engine, chassis, and cab of a dump truck is the same as that of a general truck.
High pressure oil enters the lifting hydraulic cylinder through the distribution valve and oil pipe, and there
is a safety guard board in the front of the carriage.
The engine drives the hydraulic pump through a transmission and power take-off device, and the hydraulic
tilting mechanism of the carriage is composed of an oil tank, hydraulic pump, distribution valve, lifting hydraulic
cylinder, control valve, and oil pipe.
The engine drives the hydraulic pump through the transmission and power take-off device, and high-pressure
oil enters the lifting hydraulic cylinder through the distribution valve and oil pipe, pushing the piston rod to tilt
the carriage. Tilting in the future is more common, and by controlling the piston rod movement through the
control system, the carriage can be stopped at any desired tilting position. The carriage is reset using its own
gravity and hydraulic control.
1. Classified by appearance:
Single axle dump trucks, double axle dump trucks, flat end dump trucks, pointed dump trucks, front four
rear eight dump trucks, double axle semi trailer dump trucks, and three axle semi trailer dump trucks.
2. Classified by the link form between the lifting hydraulic cylinder and the carriage:
Direct push tilt mechanism; Linkage type tilt mechanism.
3. Classified by purpose:
Agricultural dump trucks, mining dump trucks, garbage dump trucks, coal transportation dump trucks,
construction machinery dump trucks, and sludge dump trucks.
4. According to the different driving modes, it can also be divided into 6x4, 8x4 dump trucks, and semi
trailer dump trucks.
5. According to different uses, it can also be divided into mining dump trucks, used for transporting coal
mines, sand and gravel; Sanitation and greening dump trucks, used for transporting garbage, etc.
6. There are also front lift and side flip dump trucks based on the direction of the car's overturning. At
present, there are also two-way rollover dump trucks, mainly used in construction projects.
