HOWO 6X6 Dump Truck Chassis 20m3 380hp 10 Wheels For 40-50t Front Lifting

Large Image : HOWO 6X6 Dump Truck Chassis 20m3 380hp 10 Wheels For 40-50t Front Lifting

Product Details:

Place of Origin:	JINAN, CHINA
Brand Name:	SINOTRUK
Certification:	CCC
Model Number:	ZZ3257N3857A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD56000 for one unit
Packaging Details:	nude packing
Delivery Time:	5 working days
Supply Ability:	1000 sets for one month

Contact Now

HOWO 6X6 Dump Truck Chassis 20m3 380hp 10 Wheels For 40-50t Front Lifting

Description

Color:	Red, White, Blue, Green, Yellow	Engine:	WD615.47
Cabin:	HW76, HW70	Axle:	ST16
Drive Wheel:	6x6	Engine Capacity:	> 8L
Dimensions (l X W X H) (mm):	854524963170mm	Fuel Type:	Diesel
Condition:	New	Gross Vehicle Weight:	25000
Highlight:	HOWO 6X6 dump truck chassis , 20m3 dump truck chassis , 380hp dump truck chassis

HOWO 6X6 Dump Truck Chassis 20m3 380hp 10wheels For 40-50t Front Lifting

Truck chassis is a vehicle chassis used for transporting and carrying cargo. It is usually composed of the frame, suspension system, transmission system and brake system. First of all, the frame is the basic structure of the light truck load chassis, which is responsible for supporting the entire body and the loaded goods. A properly designed frame can provide sufficient strength and rigidity to ensure safe and stable transport of goods.

Second, the suspension system is crucial for the truck chassis. It uses components such as shock absorbers and springs to absorb the impact force caused by uneven roads and maintain the appropriate contact pressure between the body and the ground. A well-designed suspension system can improve ride comfort and reduce the risk of damage or deformation to the cargo. Finally, the braking system plays an important role in ensuring driving safety. It creates resistance through friction and stops or slows the car to the desired level. Excellent braking system should have the characteristics of fast response, stability, reliability and easy maintenance, and can effectively avoid accidents in emergency situations. Overall, truck chassis play an important role in modern commercial transportation. Its design and function directly affect the transportation efficiency, safety and economic benefits. Therefore, when choosing a purchase, you need to consider all of the above aspects and make wise decisions based on actual needs.

Chassis
Chassis Type		SINOTRUK HOWO DUMP TRUCK 6X6
Wheelbase (mm)		3800mm
Engine	Model	WP12.380E201, Euro II (optional)
	Type	Diesel
	Horsepower	380HP
	Option	From 336HP to 420HP for option
Gear box		HW19710(10 forward & 2 reverse)+HW50 direct-connected power take-off
Cab	Type	HW76 cab(optional)
Braking system	Drive brake	Hydraulic drum
	Parking brake	Cutting-off air brake
Tire		12.00R20 radial tire with one spare
Front axle		VG95 (drum)
Rear axle		MCP16ZG(twin axle, drum, Ratio 5.26)
Fuel tank (L)		300L

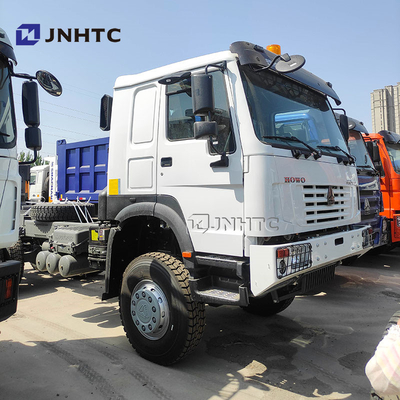

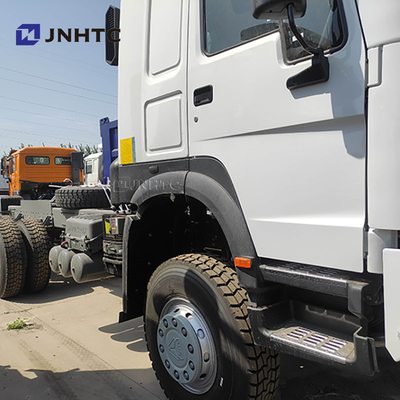

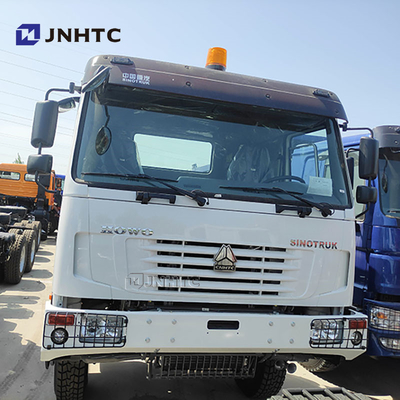

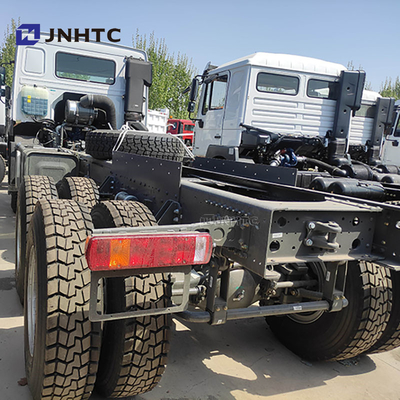

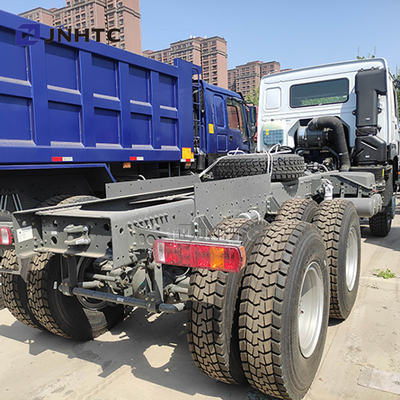

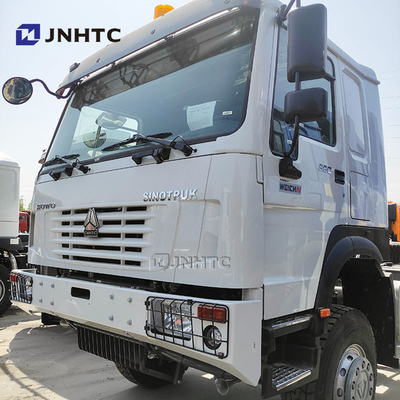

HOWO 6X6 Dump Truck Chassis 20m3 380hp 10 Wheels For 40-50t Front Lifting 0

HOWO 6X6 Dump Truck Chassis 20m3 380hp 10 Wheels For 40-50t Front Lifting 1

HOWO 6X6 Dump Truck Chassis 20m3 380hp 10 Wheels For 40-50t Front Lifting 4

HOWO 6X6 Dump Truck Chassis 20m3 380hp 10 Wheels For 40-50t Front Lifting 5

1. Factory direct supply: reliable quality and fast delivery;

2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing

parts and electrical parts are not included. After one year, we only charge cost when the question occurs;

3. Tracking service: lifelong

4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us

if the local have no Chassis Service Station;

5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local

Service station, if the local have no chassis service station, please call us freely.

6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.

7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs,

please call us freely.

FAQ

Q. What is your payment terms ?

A: 30% TT before produce and 70% TT before shipment . or 100% LC at sight ( irrevocable ).

Q. How long time you could delivery goods to customer ?

A : Generally 25 days of working , after we receive your deposits .

Q:How you can ensure you have deliveried goods to customers ?

A: We will give you the complete shipping information details for you confirmed .

Q. How you could supply customers after sales services ?

A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we

will send your professional person to your local to help you resolve problems without any hesitation , supply you all-around

after-sales services including machine maintenance and operation and technical training services etc .
