Heavy Dump Truck HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price

Certification
China Jinan Heavy Truck Import & Export Co., Ltd. certification
China Jinan Heavy Truck Import & Export Co., Ltd. certification
Customer Reviews
It feels good, very similar to MAN!

—— Hafiz Ahmed

Work with your company to save money, time and Energy .

—— Zahid Mohammed

Thank you for your continued support and service in past 6years .

—— Dave Balah

The best of quality with reasonable price and professional service give us deep confidence to build long term cooperation .

—— Jayson Kan

Good after sales service and quality

—— Mahanmd Steve

I'm Online Chat Now

Heavy Dump Truck HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price

Heavy Dump Truck  HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price
Heavy Dump Truck  HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price
Heavy Dump Truck  HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price Heavy Dump Truck  HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price Heavy Dump Truck  HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price Heavy Dump Truck  HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price Heavy Dump Truck  HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price Heavy Dump Truck  HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price Heavy Dump Truck  HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price

Large Image :  Heavy Dump Truck HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price

Product Details:
Place of Origin: China
Brand Name: Howo
Certification: ISO CCC
Model Number: jnhtc
Document: HOWO DUMP TRUCK.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD23100-25410
Packaging Details: nude
Delivery Time: 45 Work days
Payment Terms: L/C, T/T
Supply Ability: 50 units per week

Heavy Dump Truck HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price

Description
Horsepower: 336hp Condition: New
Fuel Tank: 400L Drive Wheel: 6x4
Tyres: 12.00R20 Capacity (Load): 21 - 30T
Front Axle: HF9 Rear Axle: Hc16
Color: Red, Yellow, Green, Blue, White
Highlight:

6*4 Heavy Dump Truck

,

336HP Heavy Dump Truck

,

Tipper Dumper Trucks Heavy Dump Truck

Heavy Dump Truck HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price



Model
ZZ3257V3847B1
Driver's Cab
HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine
Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6
cylinder in-line with water cooling, turbo-charging & inter cooling.
Maximum output: 400PS (294kW) at 2100 rpm
Maximum torque: 2060Nm at 1200-1500rpm
Bore: 126mm Stroke: 155mm
Displacement: 11.596L
Brand: Weichai
Steering
Model: BOSCH
Hydraulic steering with power assistance
Left hand driving
Clutch
Φ430 Pull-type diaphragm spring clutch
Transmission
Model: HW19710, 10 forward and 2 reverse
Manual type
With transmission power take-off HW70
Max Torque: 1900N·M
Front Axle
Model: HF9
Drum brake system
Rated loading capacity :9000kgs

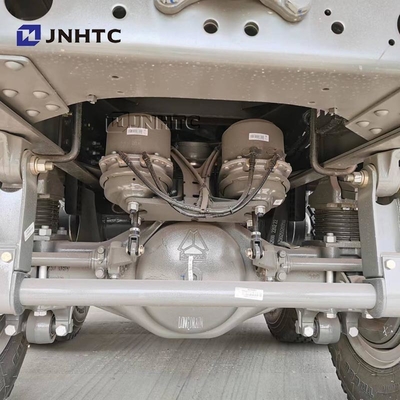

Rear Axle
Model: MCP16ZG
Capacity: 16000kgs
Drum braking steering axle,self-adjusting arm
Speed ratio:
Wheelbase
3800+1350 mm
Brake System
Type :Wabco braking system
ABS 4S/4M
Engine exhaust valve brake

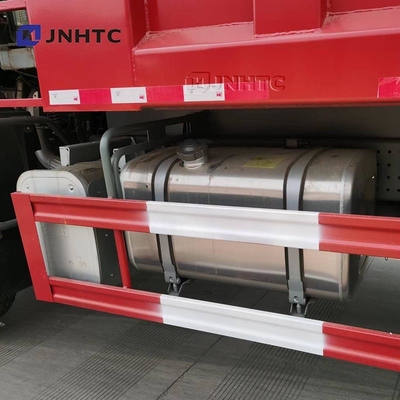

Oil Tanker
300L aluminum alloy fuel tank
Tires
Types: 12.00R20 radial tire; 18PR
10 pcs, plus one pc spare tire
Bumper
Metal bumper
Dump body
5600*2300*1500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral
fender, headlight cover.
Dimensions in mm
Front wheel track (mm): 2022
Rear wheel track (mm):1830
Overhang(front/rear) (mm):1500/1870
Overall Dimension (mm): 8650*2580*3450
Weight in kg
Dead weight (kg):13500
Gross vehicle weight (kg):25000




A dump truck is a versatile vehicle used primarily in construction and mining to transport loose materials like sand, gravel, dirt, or demolition waste. Its defining feature is its ability to "dump" its load by raising the front of the truck bed, allowing gravity to unload the materials quickly and efficiently.

Here are some common types of dump trucks:

  1. Standard Dump Truck: Has a single, fixed axle at the rear with a tilting bed that can be raised to dump its contents.
  2. Transfer Dump Truck: Equipped with a trailer that can be used to carry additional materials, and it has a mechanism to transfer the load from the trailer to the truck bed.
  3. Semi-Trailer Dump Truck: A combination of a truck and a trailer with a dump bed, offering more capacity and flexibility.
  4. Articulated Dump Truck: Features a hinge between the cab and the dump bed, allowing for better maneuverability on rough terrain.

Each type has its own advantages depending on the job requirements, such as payload capacity, maneuverability, and the type of terrain it will be used on.
