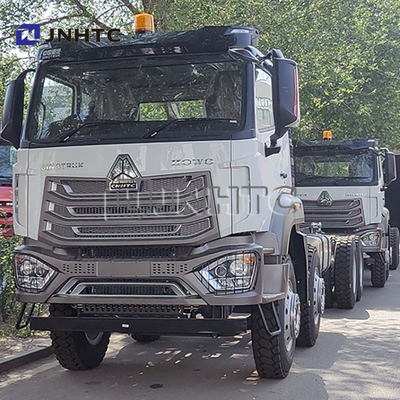

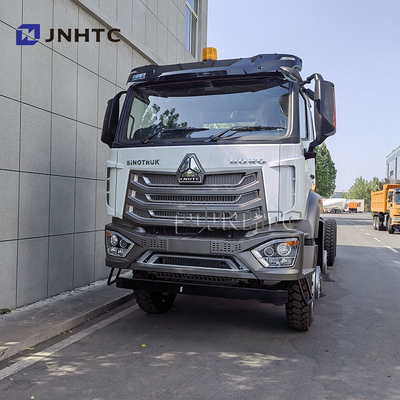

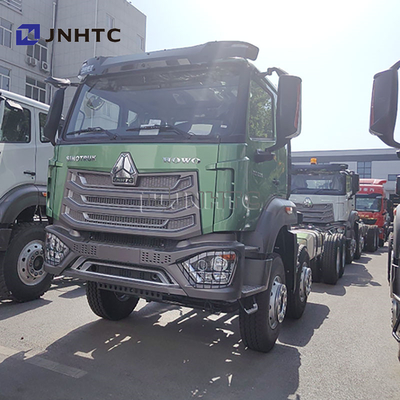

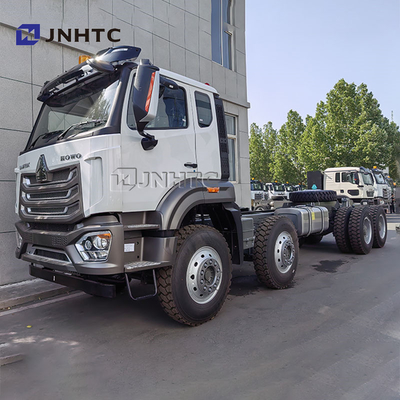

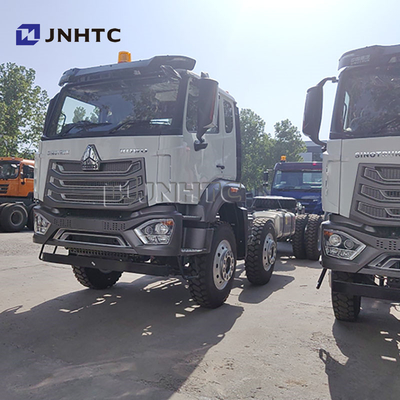

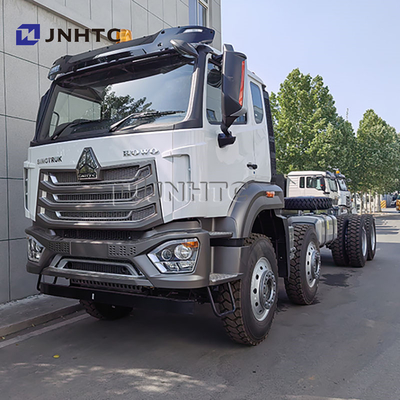

SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket

SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket
SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket
SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket

Large Image :  SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket

Product Details:
Place of Origin: China
Brand Name: Howo
Certification: ISO CCC
Model Number: jnhtc
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD23100-25410
Packaging Details: nude
Delivery Time: 45 Work days
Payment Terms: L/C, T/T
Supply Ability: 50 units per week
Contact Now

SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket

Description
Horsepower: 400hp Fuel Tank: 400L
Drive Wheel: 6x4 Tyres: 12.00R20
Capacity (Load): 21 - 30T
Highlight:

8x4 Cargo Dump Truck Chassis

,

12 Wheels Cargo Dump Truck Chassis

,

SINO Cargo Dump Truck Chassis

SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket



Model
ZZ3257V3847B1
Driver's Cab
HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine
Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6
cylinder in-line with water cooling, turbo-charging & inter cooling.
Maximum output: 400PS (294kW) at 2100 rpm
Maximum torque: 2060Nm at 1200-1500rpm
Bore: 126mm Stroke: 155mm
Displacement: 11.596L
Brand: Weichai
Steering
Model: BOSCH
Hydraulic steering with power assistance
Left hand driving
Clutch
Φ430 Pull-type diaphragm spring clutch
Transmission
Model: HW19710, 10 forward and 2 reverse
Manual type
With transmission power take-off HW70
Max Torque: 1900N·M
Front Axle
Model: HF9
Drum brake system
Rated loading capacity :9000kgs
Rear Axle
Model: MCP16ZG
Capacity: 16000kgs
Drum braking steering axle,self-adjusting arm
Speed ratio:
Wheelbase
3800+1350 mm
Brake System
Type :Wabco braking system
ABS 4S/4M
Engine exhaust valve brake
Oil Tanker
300L aluminum alloy fuel tank
Tires
Types: 12.00R20 radial tire; 18PR
10 pcs, plus one pc spare tire
Bumper
Metal bumper
Dump body
5600*2300*1500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral
fender, headlight cover.
Dimensions in mm
Front wheel track (mm): 2022
Rear wheel track (mm):1830
Overhang(front/rear) (mm):1500/1870
Overall Dimension (mm): 8650*2580*3450
Weight in kg
Dead weight (kg):13500
Gross vehicle weight (kg):25000




A dump truck, also known as a dumper truck or tipper truck, is a vehicle designed for transporting loose material such as sand, gravel, or demolition waste for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery.

Key Features of Dump Trucks:

1. Dump Bed

  • Design: An open-box bed mounted on the truck's chassis.
  • Operation: Hinged at the rear with hydraulic rams to lift the front for dumping materials.

2. Hydraulic System

  • Functionality: Powers the lifting mechanism of the dump bed.
  • Components: Includes hydraulic pumps, cylinders, and controls.

3. Chassis and Frame

  • Design: Built to withstand heavy loads and rough conditions.
  • Reinforcement: Strong steel frames and robust suspension systems.

4. Tires and Axles

  • Durability: Heavy-duty tires and axles to support significant weight and provide stability.

5. Engine

  • Power: High-power engines to handle heavy loads and challenging terrains.

6. Control Systems

  • Manual Controls: Basic models use manual levers and switches for operation.
  • Electronic Controls: Advanced models feature electronic systems for precision and ease of use.





SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket 0SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket 1SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket 2SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket 3SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket 4

SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket 5SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket 6SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket 7SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket 8SINO Howo NX 8x4 Heavy Duty 12 Wheels Cargo Dump Truck Chassis Without Bucket 9
