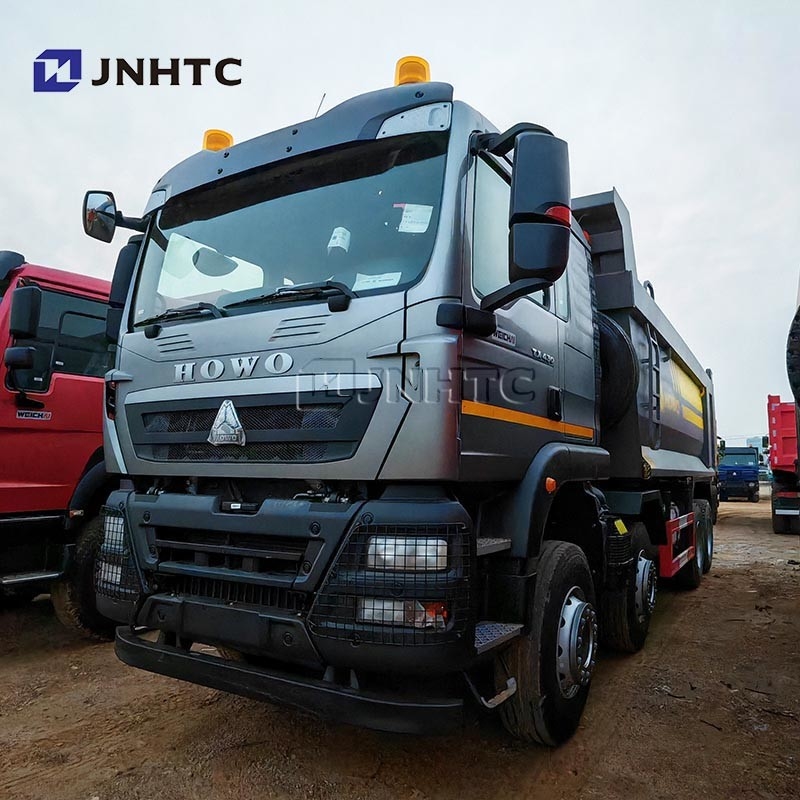

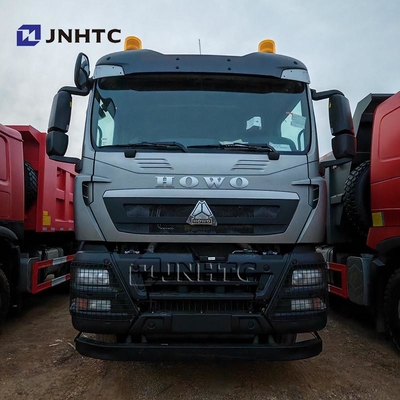

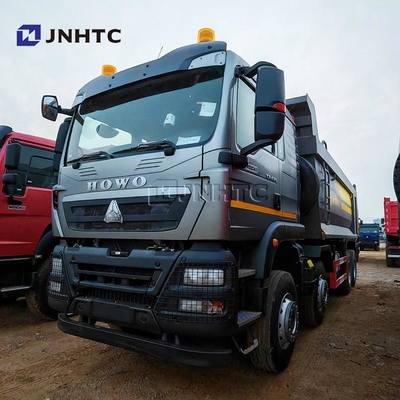

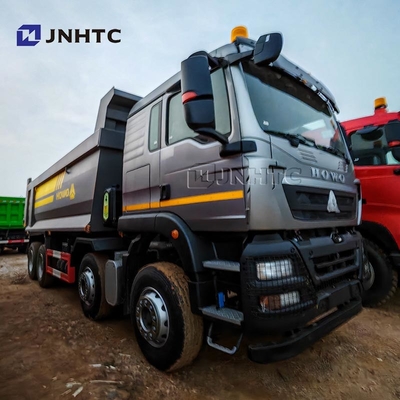

HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons

HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons
HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons

Large Image :  HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons

Product Details:
Place of Origin: China
Brand Name: Howo
Certification: ISO CCC
Model Number: jnhtc
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD23100-25410
Packaging Details: nude
Delivery Time: 45 Work days
Payment Terms: L/C, T/T
Supply Ability: 50 units per week

HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons

Description
Horsepower: 400hp Fuel Tank: 400L
Drive Wheel: 6x4 Tyres: 12.00R20
Capacity (Load): 21 - 30T Steering: Left
Highlight:

8X4 dump truck heavy duty

,

10Wheels dump truck heavy duty

,

430HP dump truck heavy duty

HOWO TX Dump Truck 430HP 8X4 6X4 10Wheels Loading 40 Tons Dump Tipper Truck



Model
ZZ3257V3847B1
Driver's Cab
HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine
Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6
cylinder in-line with water cooling, turbo-charging & inter cooling.
Maximum output: 400PS (294kW) at 2100 rpm
Maximum torque: 2060Nm at 1200-1500rpm
Bore: 126mm Stroke: 155mm
Displacement: 11.596L
Brand: Weichai
Steering
Model: BOSCH
Hydraulic steering with power assistance
Left hand driving
Clutch
Φ430 Pull-type diaphragm spring clutch
Transmission
Model: HW19710, 10 forward and 2 reverse
Manual type
With transmission power take-off HW70
Max Torque: 1900N·M
Front Axle
Model: HF9
Drum brake system
Rated loading capacity :9000kgs
Rear Axle
Model: MCP16ZG
Capacity: 16000kgs
Drum braking steering axle,self-adjusting arm
Speed ratio:
Wheelbase
3800+1350 mm
Brake System
Type :Wabco braking system
ABS 4S/4M
Engine exhaust valve brake
Oil Tanker
300L aluminum alloy fuel tank
Tires
Types: 12.00R20 radial tire; 18PR
10 pcs, plus one pc spare tire
Bumper
Metal bumper

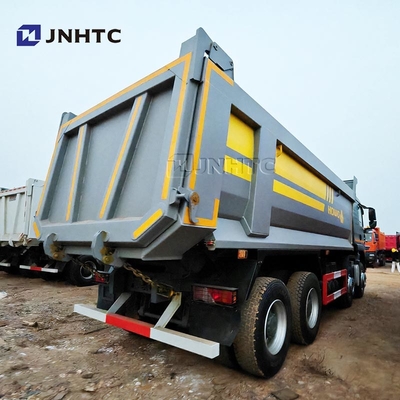

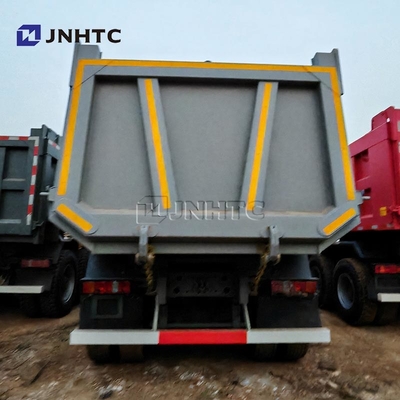

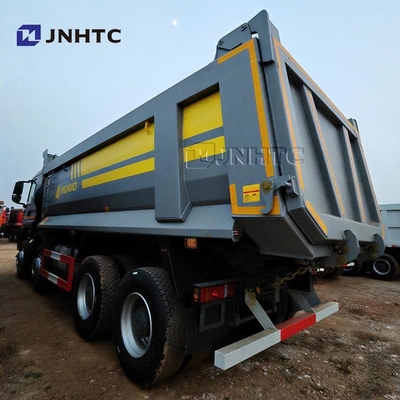

Dump body
5600*2300*1500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral
fender, headlight cover.
Dimensions in mm
Front wheel track (mm): 2022
Rear wheel track (mm):1830
Overhang(front/rear) (mm):1500/1870
Overall Dimension (mm): 8650*2580*3450
Weight in kg
Dead weight (kg):13500
Gross vehicle weight (kg):25000


A dump truck is a type of heavy-duty vehicle designed for transporting and unloading bulk materials such

as sand, gravel, dirt, or construction debris. It features a large, open-box bed that is hinged at the rear and

equipped with hydraulic pistons. These pistons allow the bed to be raised from the front, which causes the

material to slide out of the back of the truck for unloading.

Dump trucks come in various sizes and configurations to suit different needs. Some common types include:

  1. Standard Dump Trucks: These have a rigid chassis and a hydraulic ram-mounted dump body.

  2. Articulated Dump Trucks: These consist of a tractor and a trailer with a hinge between them,

  3. allowing for better maneuverability on rough terrain.

  4. Transfer Dump Trucks: These have separate trailer units powered by the same engine, allowing for

  5. larger payloads and increased efficiency.

Dump trucks are essential in industries such as construction, mining, and agriculture where there's a need

to transport large quantities of materials efficiently. They are built to withstand heavy loads and rough

conditions, with powerful engines and robust chassis. The ability to unload quickly and precisely makes

dump trucks indispensable for tasks requiring frequent material movement and distribution.





HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons 0HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons 1HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons 2HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons 3



HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons 4HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons 5HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons 6HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons 7HOWO TX Dump Truck Heavy Duty 430HP 8X4 6X4 10Wheels Loading 40 Tons 8
