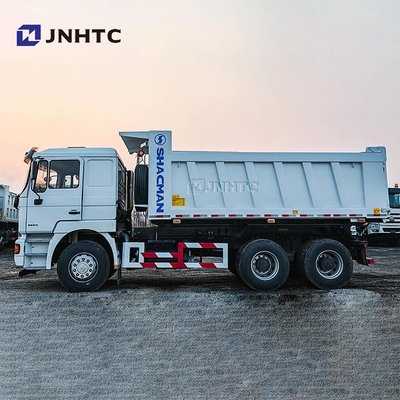

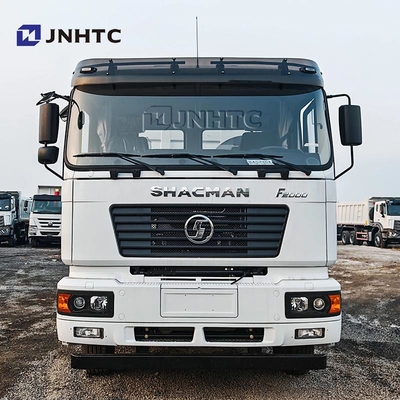

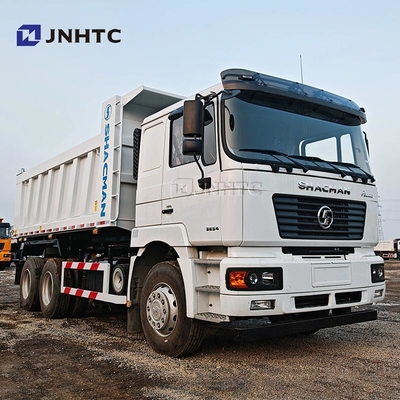

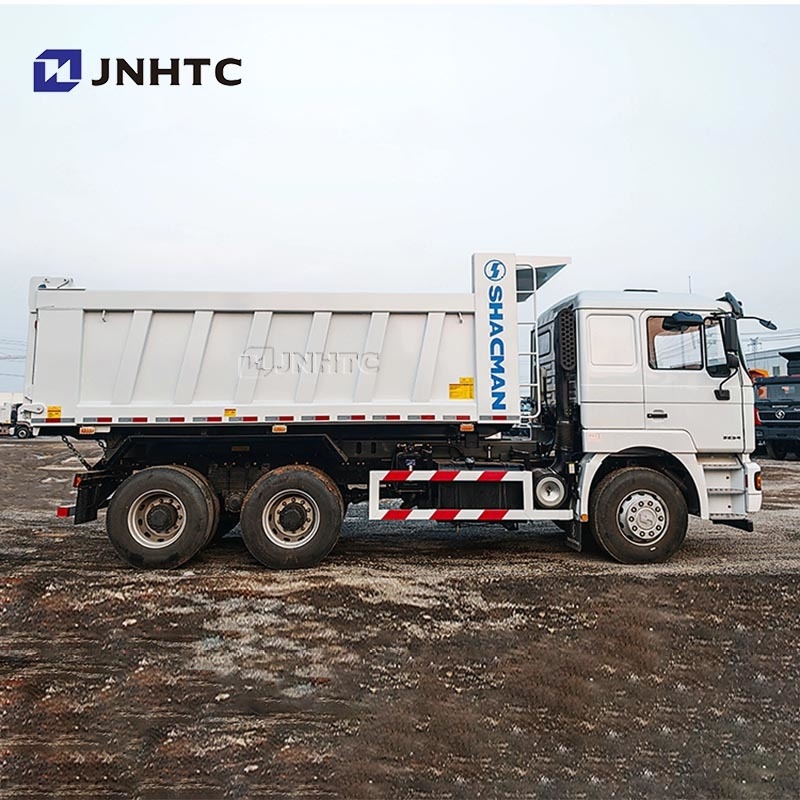

Large Image :  Shacman F2000 Heavy Truck 10wheels load 30tons 6x4 Dump Truck

Product Details:
Place of Origin: Xi'An
Brand Name: SHACMAN
Certification: ISO,CCC,GCC
Model Number: SX3255DT384
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: FOB 30000-33000 USD Per Unit
Packaging Details: Nude,wax before shipping.
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 300 Units Per Month

Shacman F2000 Heavy Truck 10wheels load 30tons 6x4 Dump Truck

Description
Steering: Left Place Of Origin: Shandong
Engine Brand: WEICHAI Capacity (load): 20-30t
Emission Standard: Euro 2-Euro 6
Highlight:

Shacman F2000 6x4 dump truck

,

30 ton heavy duty dump truck

,

10 wheel dump truck for sale

Shacman F2000 Heavy Truck 10wheels load 30tons 6x4 Dump Truck



Drive type
6×4
Complete kerb mass (kg)
11200
Max.total mass (kg)
25000
Max.speed (km/h)
70
Min.turning circle(m)
18
Min.ground clearance(mm)
314
Approach / Departure angle (°)
16/66
Max.gradeability(%)
40
Appearance dimensions (mm)
Max.length
8275
Max.width
2490
Max.heigh
3300
Front / Rear overhang
1525/1600
Wheel base(mm)
3800+1350
Track width(mm)
1939 / 1800
Engine
WP10.290
Rated Output (kw/ps)
228/290
Clutch
φ420mmSpring-loaded clutch damper
Transmission
FULLER 9JS135
Gear ratio
12.11 8.08 5.93 4.42 3.36 2.41 1.76 1.32 1.00 12.66R
Front axle
7.5tons
Rear axle
Shan Qi Steyr military reinforced axle 13tons
Steering
Integral inner circulation power sreering
Cab
D'LONG F2000, flat roof
Tire
12.00R20
Fuel consumption for 100km(50km/h) L
36
Fuel tank capacity (L)
300
Platform dimensions(mm)
5600*2300*1500 middle lift



Shacman Auto dump trucks are equipped with a range of powerful engines. For instance, some

models feature engines from well - known manufacturers like Weichai. These engines are

engineered to deliver high torque outputs, which are crucial for heavy - load transportation. With

power ratings that can reach up to a significant horsepower, they can easily handle the task of

hauling large volumes of materials, whether it's in construction sites, mining areas, or other

industrial applications. The engines are also designed with advanced combustion technologies

and turbocharging systems. This not only boosts their power but also improves fuel efficiency,

ensuring that operators can get the job done while keeping running costs in check.
