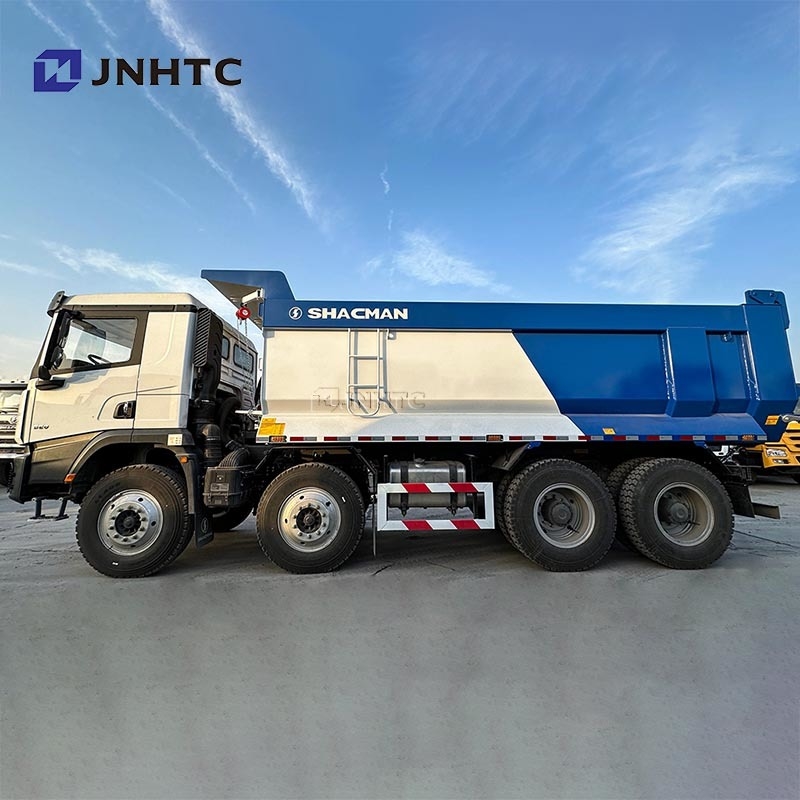

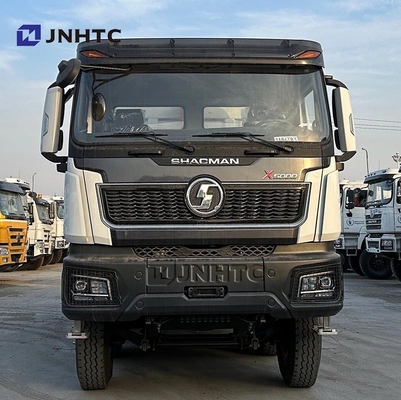

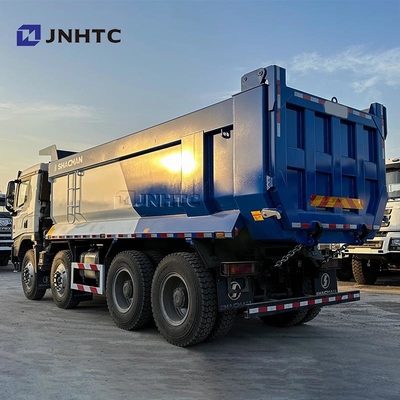

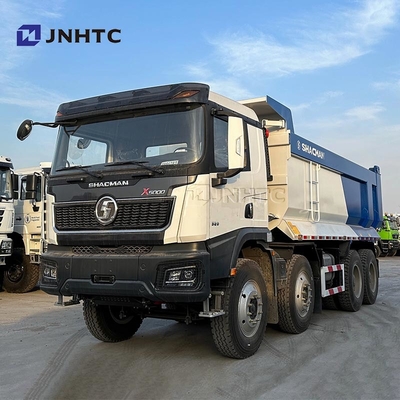

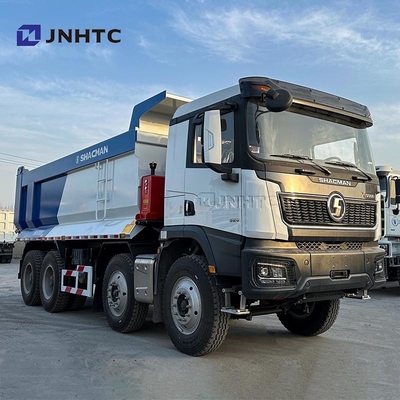

China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks

China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks
China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks
China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks

Large Image :  China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks

Product Details:
Place of Origin: Xi'An
Brand Name: SHACMAN
Certification: ISO,CCC,GCC
Model Number: jnhtc
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: FOB 30000-33000 USD Per Unit
Packaging Details: Nude,wax before shipping.
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 300 Units Per Month
Contact Now

China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks

Description
Product Name: Left-Hand Dumper Truck Gross Vehicle Weight: 25000
Engine Capacity: > 8L Drive Wheel: 8X4
Capacity (load): 35t Horsepower: 520hp
Highlight:

Shacman X5000 dump truck

,

520HP heavy duty dump truck

,

12 wheel left-hand dump truck

China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks



ruck Brand
Shacman
Dimension(Lx W xH)
Dimension(Lx W xH)
Cargo body size (L*W*H, mm)
7400x2300x1400
Cargo body thickness(mm)
bottom:8mm, side:6mm
Lift type of Carriage
Ventral lifting
Wheel base (mm)
1800+3575+1400
Curb weight(kg)
16290
Loading Weight(kg)
30000
Fuel tanker capacity
300L with locking fuel cap
Fuel consumption(L/100km)
32
Clutch
Single-plate dry clutch Φ420mm
Engine
Model:WP10.380E22
Horse Power, max(kw/rpm):380HP,279/2200
Emisssion standard:EURO II
Transmission
12JSD200T-B,12 forwards and 2 reverse
Steering system
ZF8118
Front axle
MAN 16T DOULBE REDUCTION AXLE
Rear axle
MAN 9.5T
Tire
12.00R20 13 pieces
Cab
F3000 cab, (one sleeper,with air-conditioner)
China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks 0


China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks 1China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks 2China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks 3China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks 4China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks 5

A dump truck is a specialized vehicle engineered to efficiently transport and unload bulk
materials such as sand, gravel, construction debris, and agricultural products. Its defining
feature is a hydraulically operated open-box bed, which can be tilted to discharge contents
through the rear or side, eliminating the need for manual unloading and significantly boosting
work efficiency.​
Most dump trucks are built with robust chassis and powerful engines to handle heavy loads,
often ranging from a few tons to over 100 tons for large industrial models. The hydraulic system,
consisting of cylinders, pumps, and controls, allows for smooth and controlled tilting, ensuring
safe and precise material release even in challenging terrain.

China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks 6China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks 7China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks 8China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks 9China Factory Shacman X5000 8X4 520HP 12 Wheel Left-Hand Dump Trucks 10
