Product Details:
|
| Driving Type: | 4×2 | Torsion: | 1190N·m(1200-1500r/min) |
|---|---|---|---|
| Maximum Authorized Total Mass: | 10950kgs | Type: | WD615.92C |
| Turning Diameter: | 17mm | Min Ground Clearance: | 260mm |
| Approach Angle/Departure Angle: | 16°/13° | Maximum Speed(Km/H): | ≤ 90km/h |
| Highlight: | fire fighting vehicles,foam fire truck |
||

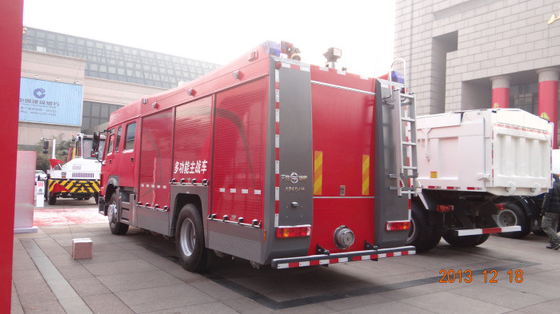

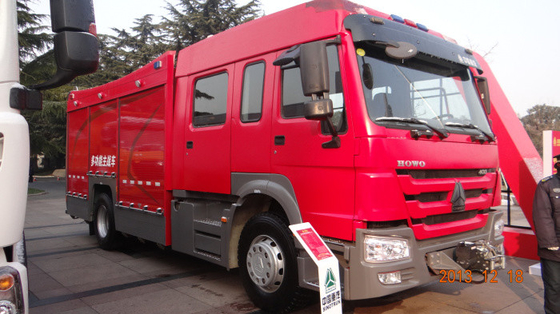

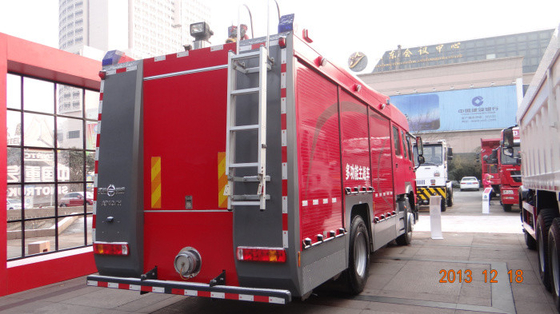

Sinotruk Howo 4×2 Fire Fighting Truck Water Tank Wheel base 4600mm red color 4 doors
Description:
1). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
Specification:
| SPECIFICATIONS FOR FIRE TRUCK | |||
| Name | Fire-extinguisher water tanker | ||
| Model | KWZ5190GXFPM80H | ||
| Chassis Type | ZZ1167M4617C | ||
| Driving Type | 4x2 | ||
| Wheel Base (Mm) | 4600 | ||
| Seating capacity | 6 | ||
| ENGINE | |||
| Type | WD615.92C | ||
| Power(KW) | 198 | ||
| Torsion | 1190N·m(1200-1500r/min) | ||
| DIMENSION PARAMETER | |||
| Dimension (Mm)L×W×H | 8570×2500×3570 | ||
| Overhang(Mm) | Front | 1500mm | |
| Rear | 2310mm | ||
| Approach Angle/Departure Angle | 16°/13° | ||
| min ground clearance | 260mm | ||
| FUNCTION PARAMETER | |||
| Turning Diameter | 17m | ||
| Maximum Speed(Km/H) | ≤ 90km/h | ||
| LOAD CAPACITY | |||
| Maximum Authorized Total Mass | 10950kg | ||
| Water | 8000kg | ||
| FIRE-FIGHTING EQUIPMENT | |||
| Fire Pump | flow | 60or30L/S | |
| pressure | 1.0or2.0Mpa | ||
| Primer Pump | depth | ≥ 7m | |
| time | ≤ 50s | ||
| Fire Monitor | location | truck roof in central | |
| flow(l/s) | 50 | ||
| pressure(mpa) | ≤1.0 | ||
| flow | 50L/S | ||
| range(m) | ≥70 | ||
| rotation angle | ≥360 | ||
| angle of altitude | ≥+80° | ||
| angle of depression | ≤-15° | ||
